AIM Expansions - TC Hub

Description

AIM Expansions - TC Hub

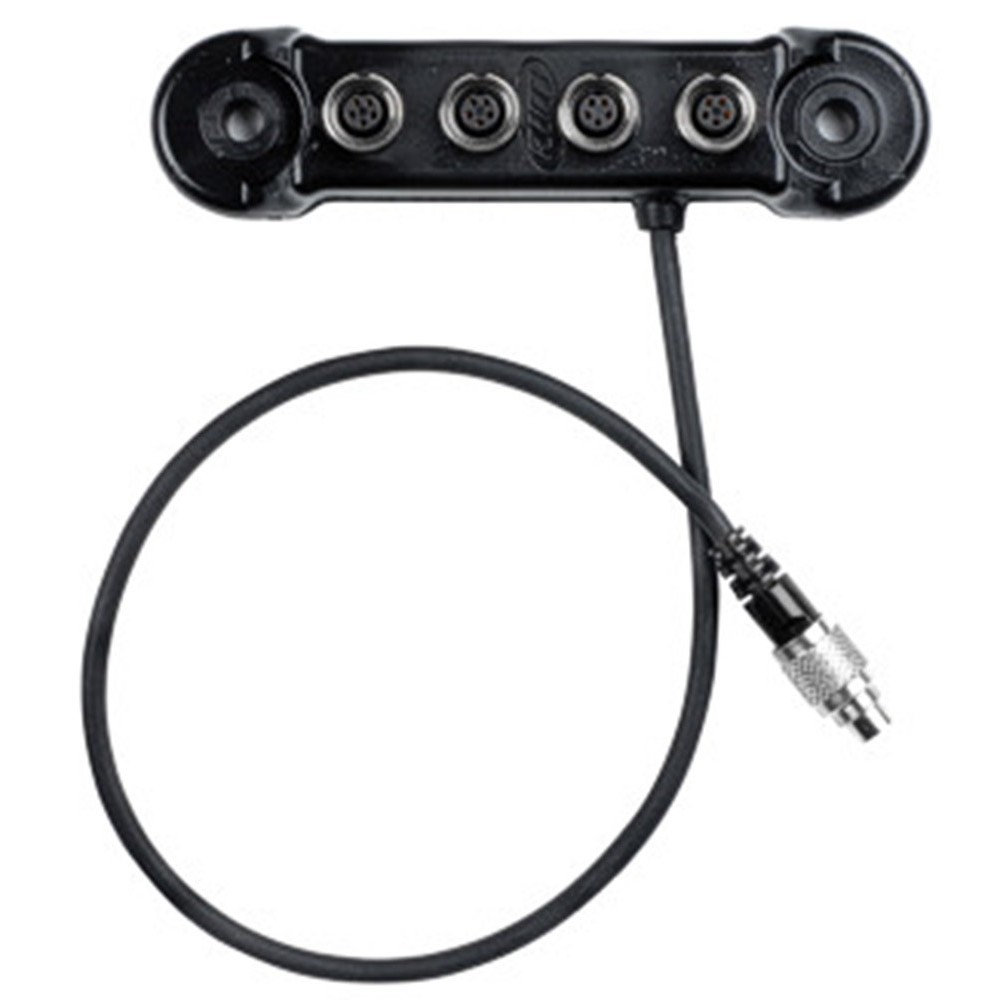

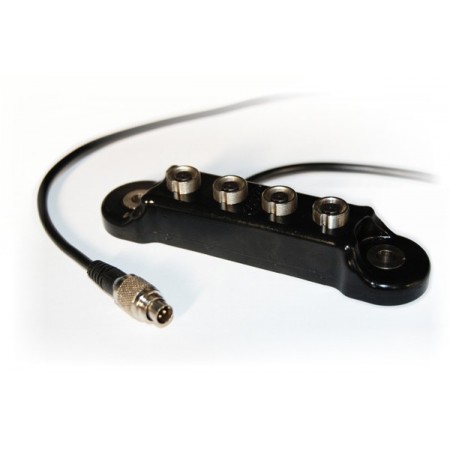

The AIM Expansions - TC Hub is an essential component for automotive motorsport professionals seeking comprehensive engine temperature monitoring. Designed by AIM, a leading brand in racing data acquisition systems, the TC Hub expands your vehicle’s temperature sensing capabilities, ensuring precise and reliable data collection during high-performance racing conditions.

Key Features and Benefits

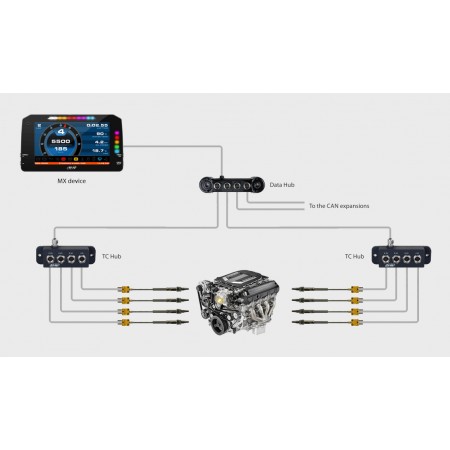

• Enhanced Temperature Monitoring: Connect up to four additional thermocouples via CAN bus to AIM loggers. This allows detailed monitoring of critical engine parameters such as exhaust gas temperature per cylinder, water temperature, oil temperature, and cylinder head temperature.
• Compatibility and Integration: Seamlessly integrates with all AIM data loggers, providing a unified platform for real-time engine diagnostics and performance analysis.
• Robust and Weatherproof Design: Constructed with durable aluminum, the TC Hub is waterproof and built to withstand harsh racing environments, ensuring consistent performance race after race.
• High Sampling Frequency: Offers configurable sampling rates up to 50Hz per channel, delivering detailed temperature data that is vital for optimizing engine tune-ups and preventing potential failures.
• Minimized Wiring: Simplifies installation by reducing wiring complexity, which saves time and reduces potential points of failure.

Technical Specifications

Applications in Motorsports

The AIM Expansions - TC Hub is vital for race teams and motorsport engineers who require granular control of engine temperatures to maximize performance and durability. It is particularly useful in:

• Monitoring exhaust gas temperatures per cylinder to optimize combustion efficiency
• Tracking water, oil, and head temperatures to prevent overheating and engine failure
• Data acquisition for fine-tuning engine maps and tuning strategies
• Ensuring reliable temperature readings during endurance and sprint racing

Why Choose AIM TC Hub?

Built for precision, durability, and ease of use, the AIM Expansions - TC Hub provides racing teams with a vital tool to keep engine temperatures under control and push the limits of automotive performance. Its high sampling rate, waterproof aluminum design, and seamless integration make it an indispensable part of any racing data acquisition system.
