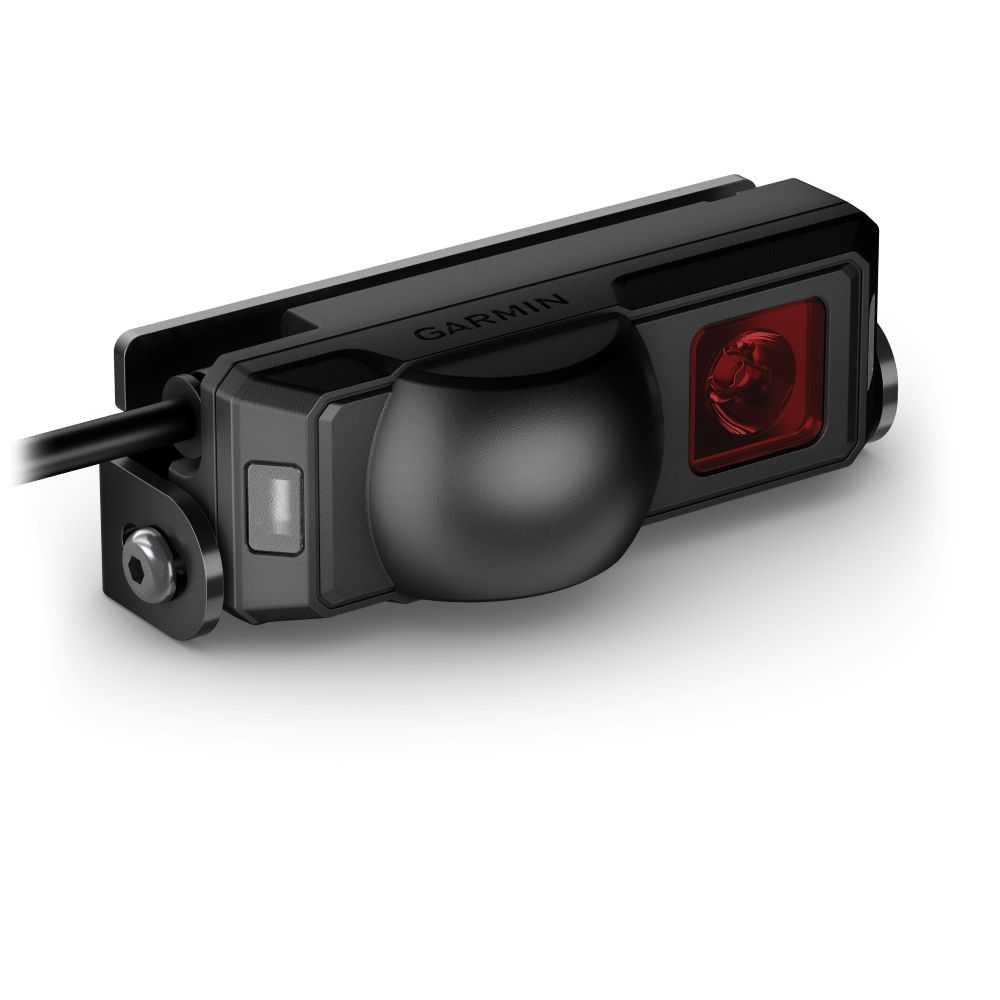

Garmin Catalyst™ R1 Racing Radar

Item # GAR-010-04735-00

RACE AND SEE

Gain a competitive edge with this high-performance racing radar. See visual alerts of vehicles approaching from behind to improve awareness and vehicle defense1 on the racetrack.

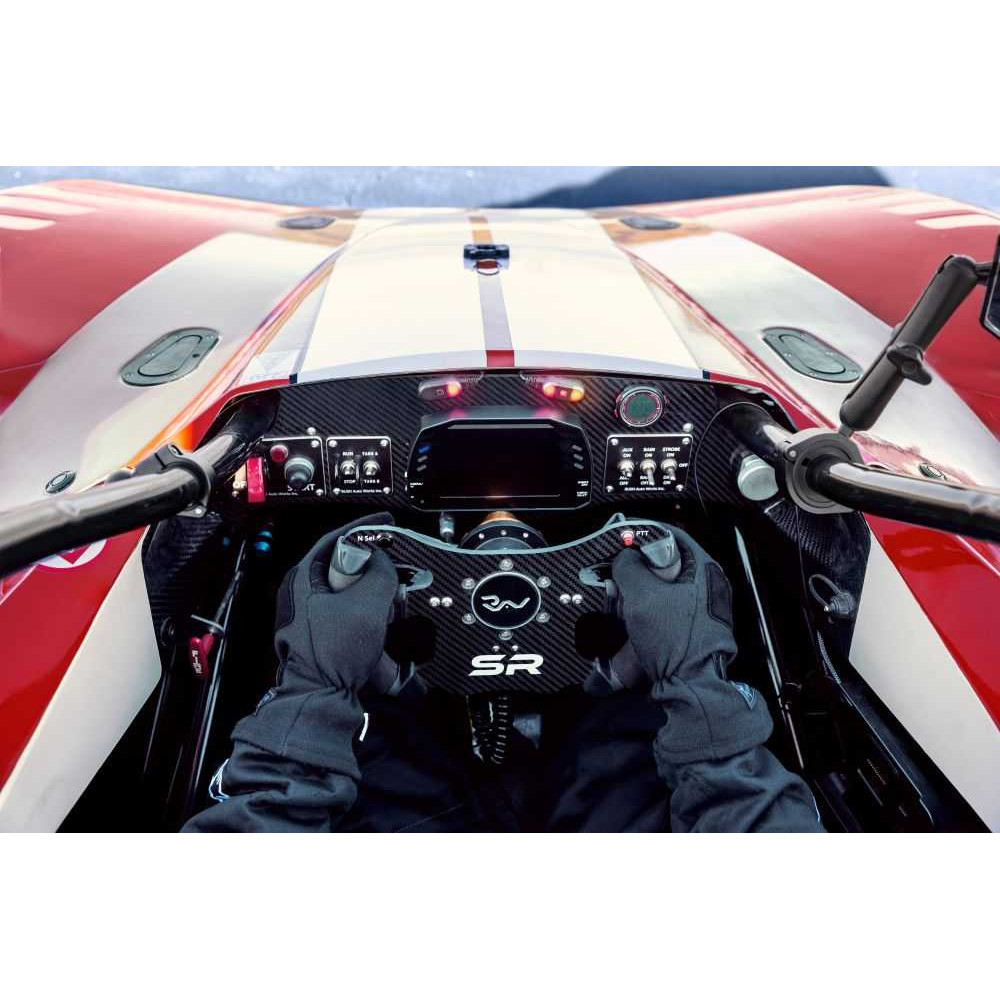

EXCEPTIONAL COVERAGE, RANGE AND PRECISION HEADS-UP INDICATOR LIGHTS PROVIDE AWARENESS WHILE KEEPING YOUR EYES ON THE RACETRACK SMALL, COMPACT DESIGN

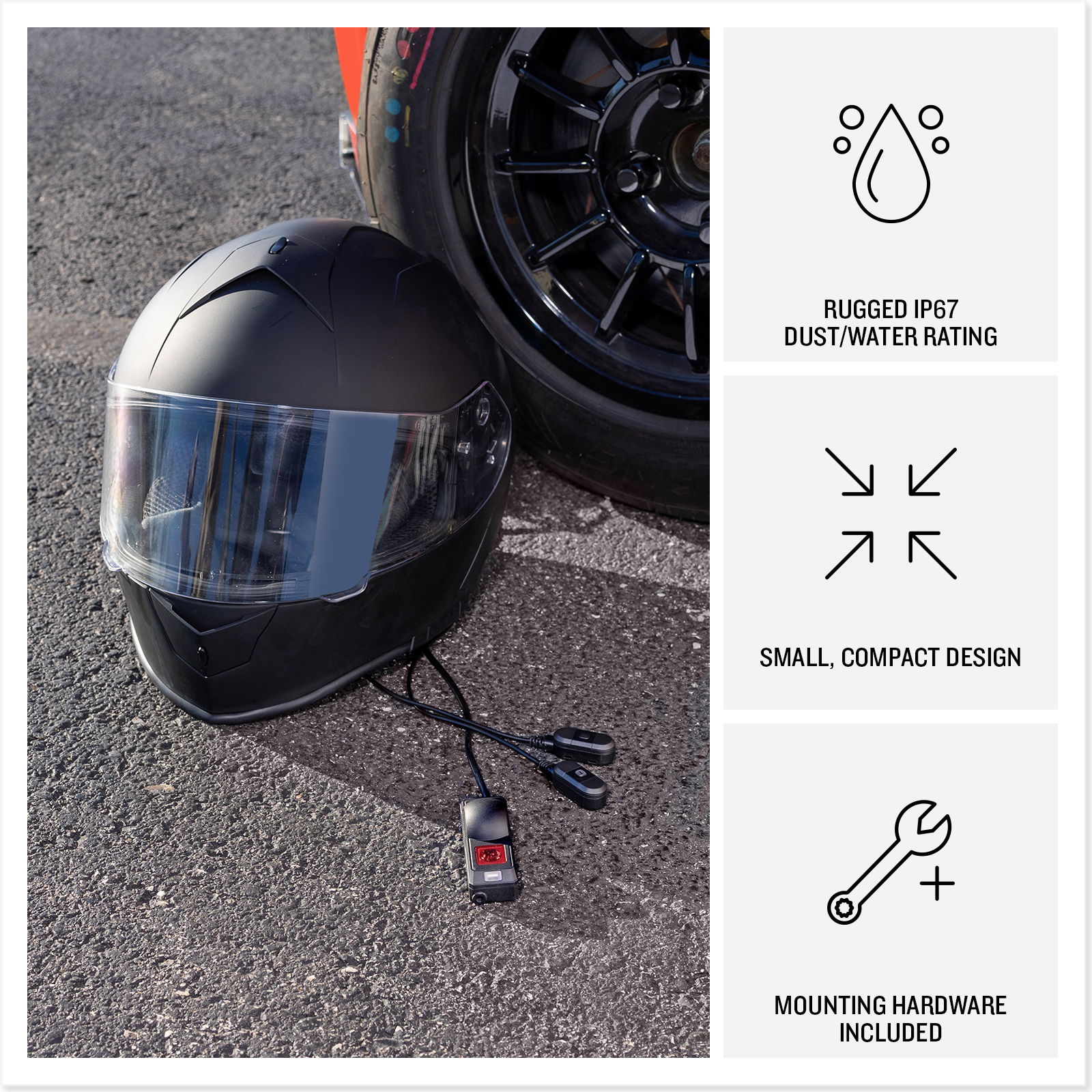

RUGGED IP67 DUST/WATER RATING INCLUDES MOUNTING HARDWARE TO SECURE ON YOUR TRACK VEHICLE
$799.99
Available for Backorder (contact us for delivery times)

Description

BUILT TO DRIVE



ON THE TRACK

In The Box:

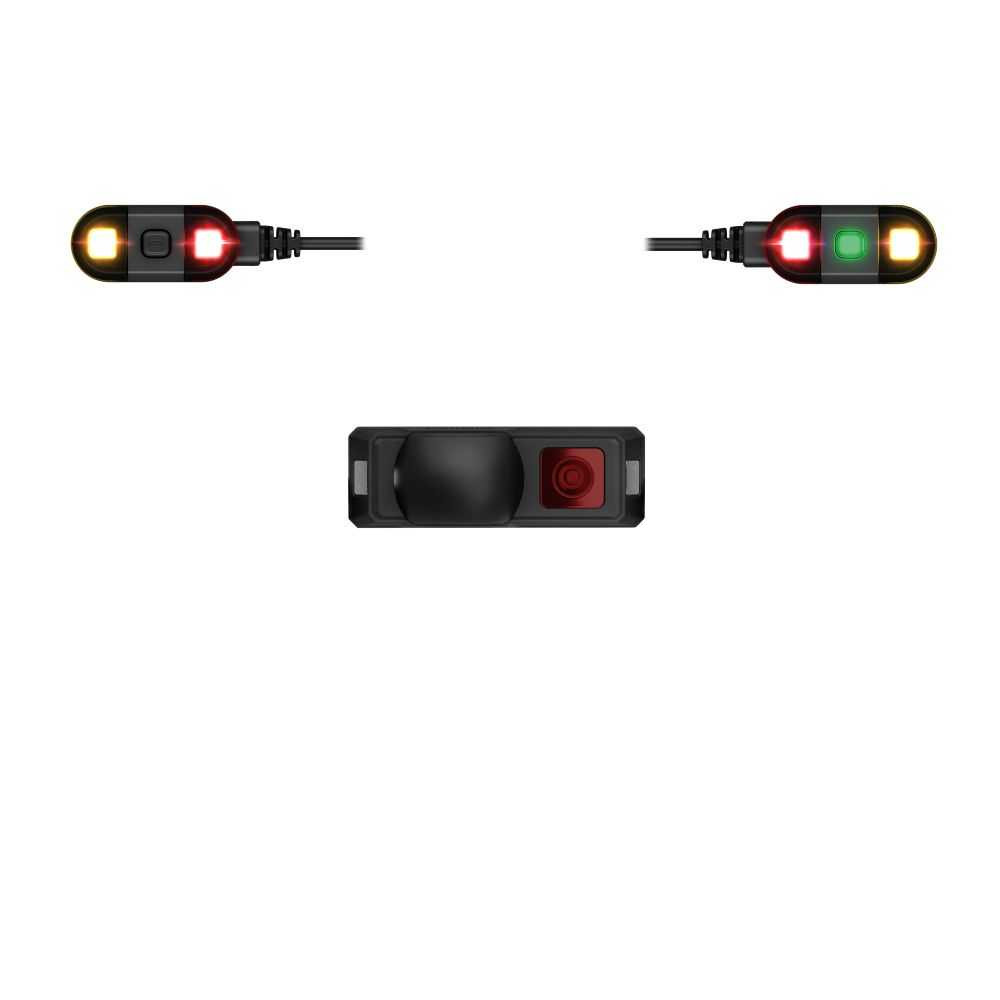

  • Garmin Catalyst™ R1

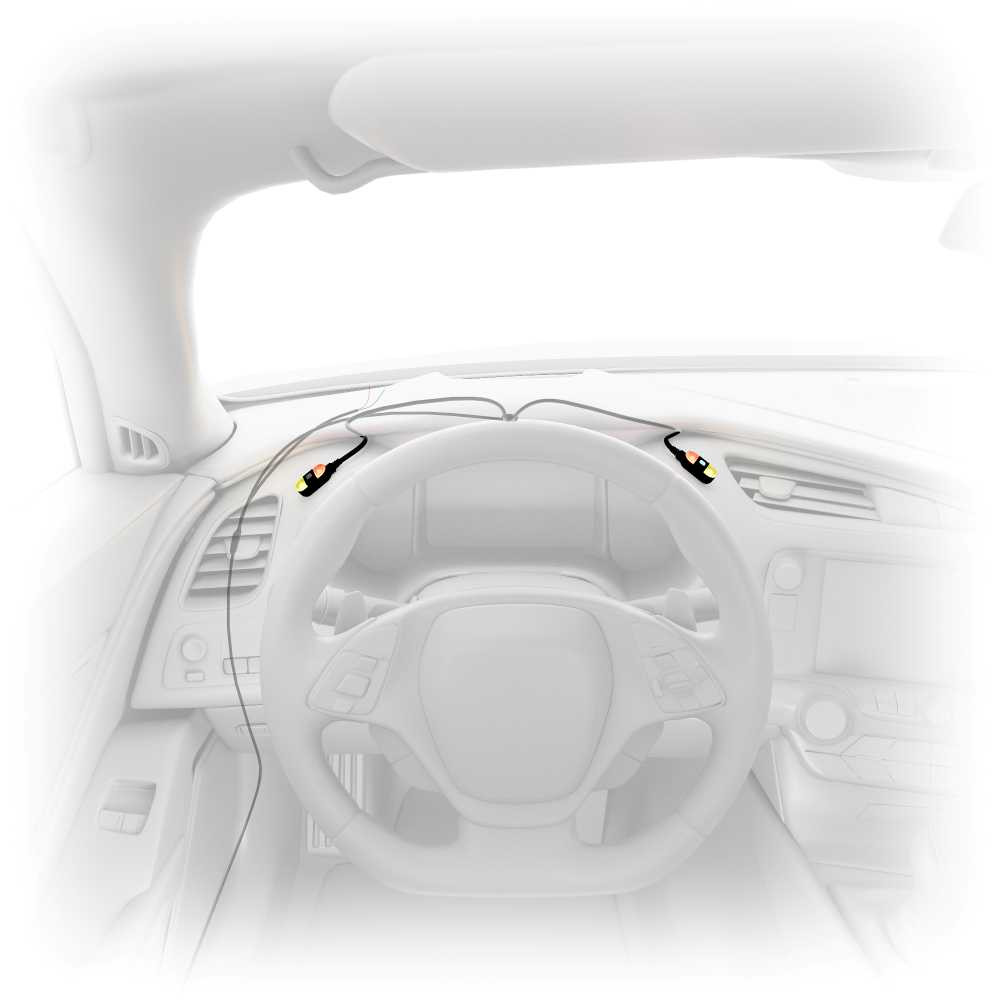

  • Indicator lights with 10 ft (3 m) cable

  • Bare wire power cable

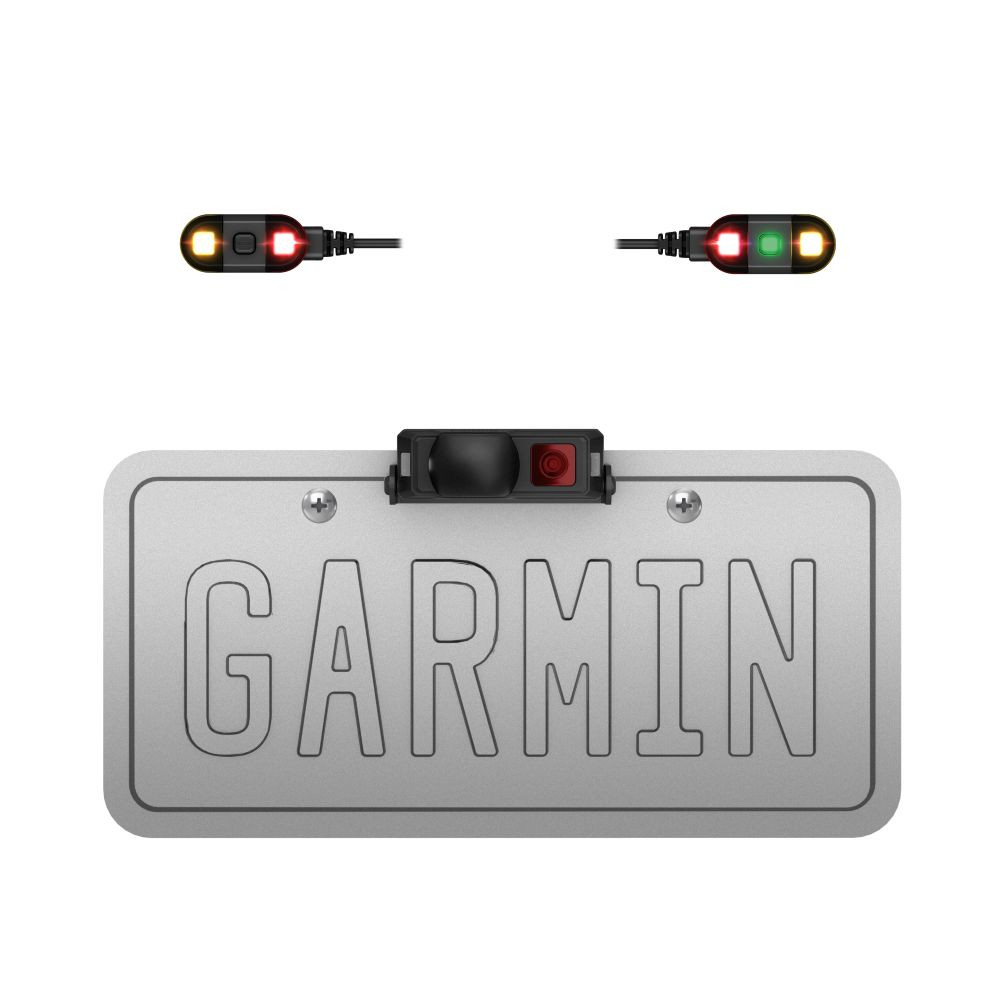

  • Surface plate mount bracket with screws

  • Adhesive mounts

  • Zip ties

  • Documentation

General Specifications

Sensor dimensions (LxWxD) 78.75 x 26.95 x 30.00 mm
Light dimensions (LxWxD) 42.56 x 17.31 x 14.00 mm
Sensor weight, with cable, without mounts 348.7 g
Light's weight, with cable, without mounts 97.4 g
Radar mounts versatile panel mount
Power source Wired 12 V power (installation required)
Bluetooth™ yes (for smartphone app)
Water rating IP67
Status indicator yes
Power/Mode button yes
Automatic shut down when parked yes (after 10 min)
Radar detection distance Approaching vehicles up to 197 ft (60 m) away
Radar detection angle (horizontal) 170°
Minimum radar operational speed 15 mph
Maximum radar operational speed 177 mph (285 km/h)
Vehicle detection speed Approaching vehicle speed from 0 to 43 mph (from 0 to 70 km/h) relative to your current speed
Light sensor for automatic brightness dimming yes
Heads-up vehicle in blindspot alerts when moving yes
Heads-up approaching vehicle alerts when moving yes
GAR-010-04735-00

Data sheet

Equipment Type
Sensors
Vehicle
Bike
Car
Kart

Specific References

upc
753759374624
seid
0218220000000
mpn
010-04735-00
