Cartek Wireless Steering Wheel Controls W/ Paddles

Cartek Wireless Steering Wheel Controls W/ Paddles

Item # CAR-CKWX07

Wireless Control System for Racing Steering Wheels: Installs quickly with infrared technology, eliminating wiring, curly cords, and costly connectors for racing applications.
Complete Kit with Customizable Tactile Switches: Features 8 waterproof tactile switches, infrared transmitter, receiver, relay control module, and customizable label sheets for versatile button configuration.
Advanced Electronic Control and Connectivity: Supports relay modes like momentary, latching, flashing, with full compatibility for vehicle electronics and quick release hubs.

$1,239.00

Quantity

In Stock

Description

The Wireless Control System from Cartek is the quickest and easiest way to install pushbutton controls to a detachable racing steering wheel. This innovative solution means users no longer spend time wiring in their own switches on to a custom fabricated panel, and do not have to contend with ‘curly’ cords or expensive steering wheel connectors that can damage very easily.

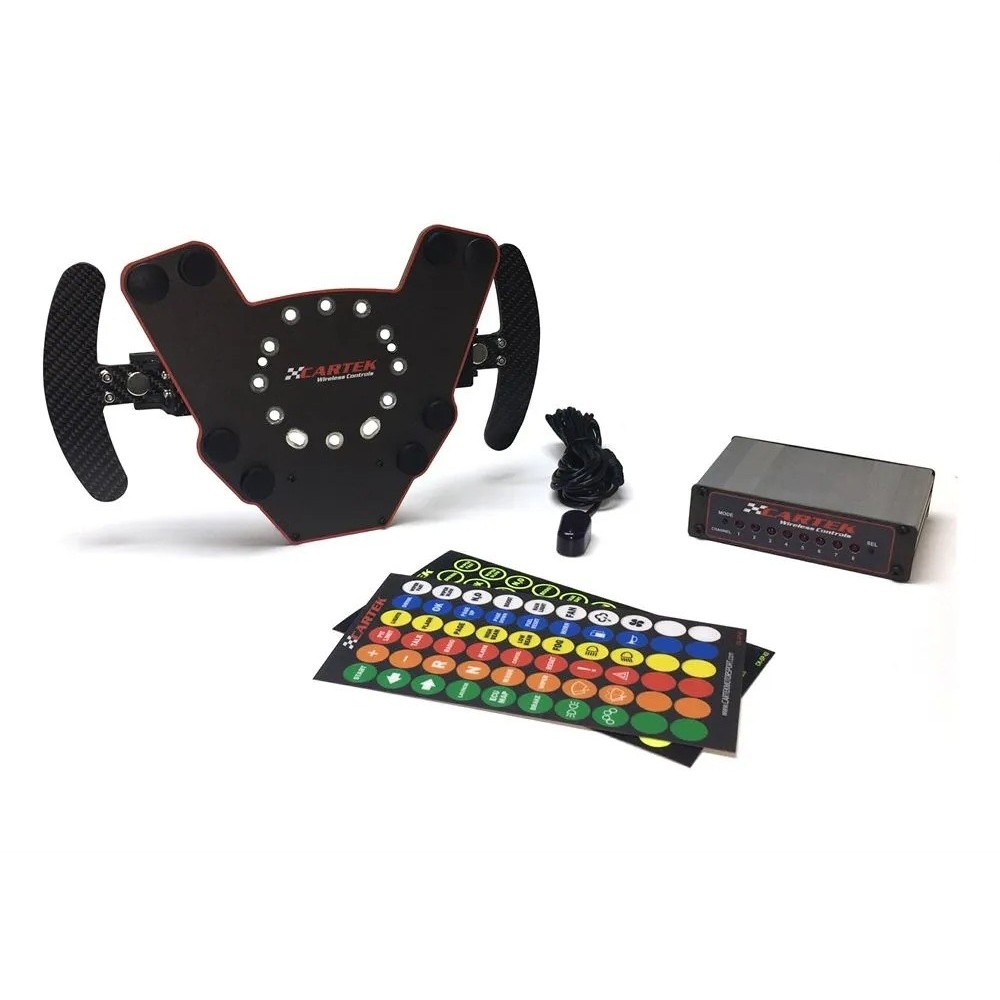

The complete system includes a universal steering wheel panel which incorporates 8 tactile switches and infrared transmitter module. Also included is an infrared receiver, a relay control module which controls the functionality of each switch on the steering wheel, and 2 Sticker sheets allowing users to fully customise the buttons on the steering wheel.

The Relay Control module provides a choice of push button functionality including momentary, latching and flashing modes for uses such as: PTT Radio, pit lane limiter, dash menus, lights, indicators, etc..

FEATURES

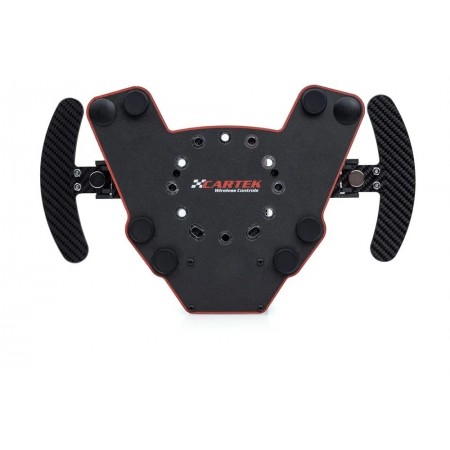

Steering wheel panel with 8 tactile switches

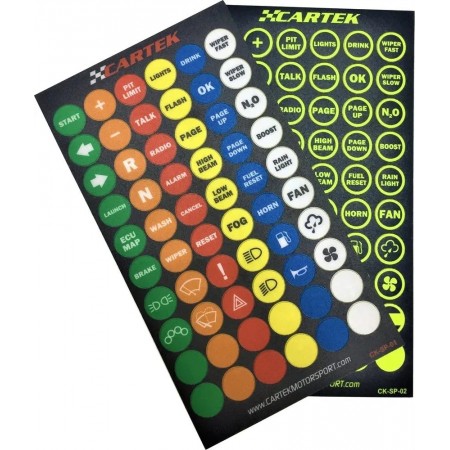

Appearance is customisable using the Multicoloured or UV Fluorescent label sheets supplied. The fluorescent labels will glow at night when a low power UV light is installed in the cockpit.

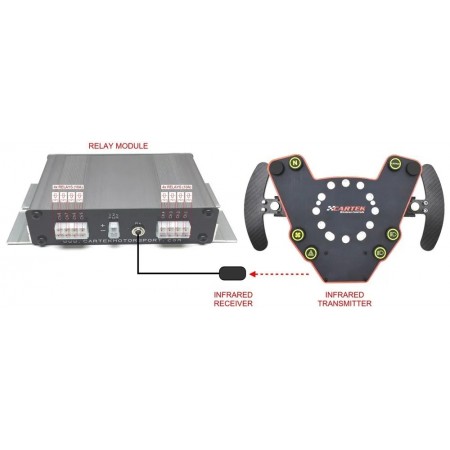

Infrared wireless link between steering wheel and dashboard designed to eliminate switching delays and external radio interference. Full 360° communication.
Compatible with any make and type of quick release hub.
8 Independent relay channels (10A rated contacts). 0v or 12v switched depending on user requirements.
Relay Control Module communicates with vehicle electronics such as ECU, Dash, PDM, PDP-16, Radio or can be wired directly to control headlights/indicators etc.
Configurable relay functions including Momentary action, Latching, Latching with power-off memory, Flashing...
Fast response time, suitable for electronic gear shifting.
Long battery life (approx. 3 years depending on usage). Incorporates battery test, easily replaceable.
