Brey Krause C7 Corvette Passenger Floor Adapter

Description

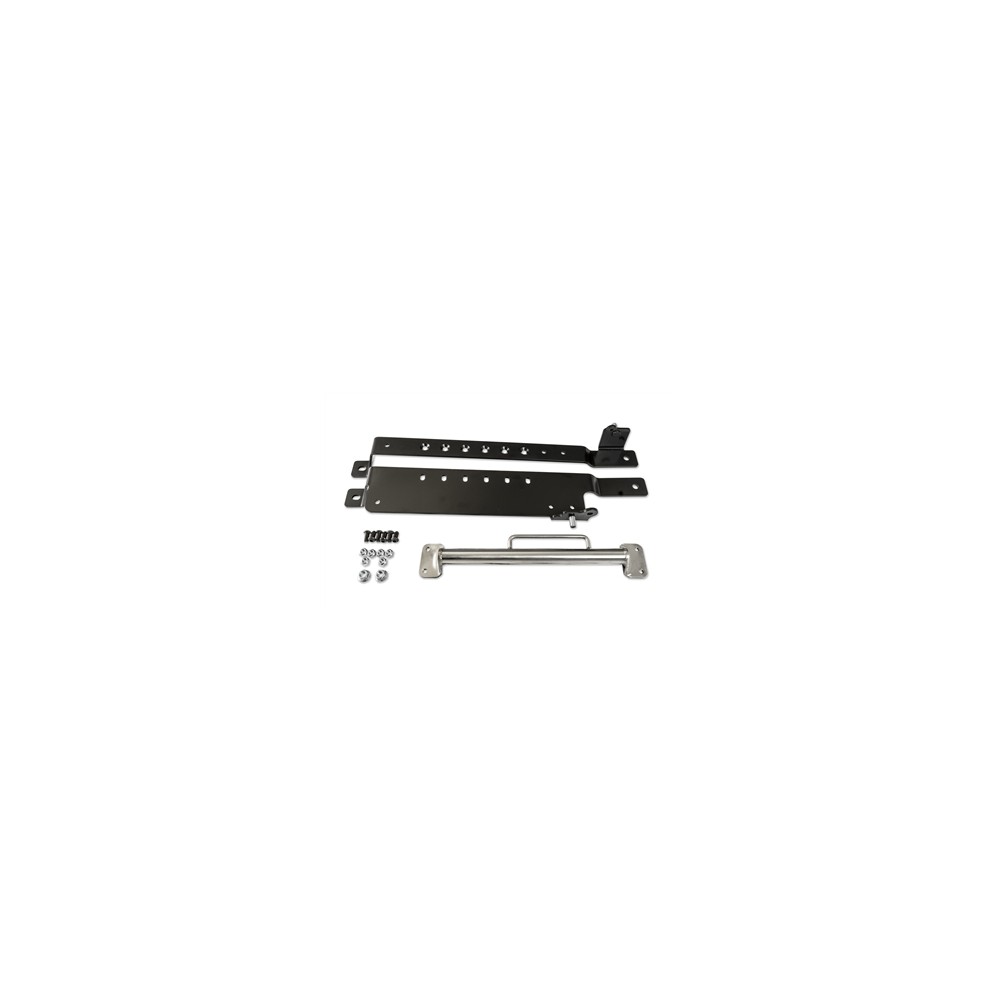

Brey-Krause offers an innovative solution for race seat mounting in Corvette C6 and C7 coupes, including Z06. The R-9154 includes a complete assembly for simple installation and adjustment flexibility. Brey-Krause race seat side mounts and aftermarket sliders mount directly to this floor pan kit. The integrated sub-bar is adjustable for proper 5 or 6-point sub-strap routings. This design allows for reuse of stock 3-point belts and provides inboard/outboard 4/5/6 point harness lap belt mounting locations.

Material: Type 304 Stainless Steel

Finish: Satin Black Powder-Coat, Brushed Stainless Sub Strap Mount

Weight: 0 lbs.

Models: Fits C6 and C7 coupes ('05 - present), including Z06

(Compatible with C5 when not using 3-point seat belt)

Installation: Attaches to passenger side and includes Sub Strap Mount. All necessary hardware included

Miscellaneous: Seat brackets must be purchased separately - see BK side mount brackets and aftermarket sliders. This adapter is only compatible with aftermarket Recaro sliders.

These Seat Track Adapters are specifically designed to address the height issue seen in Corvette C7's. These adapters install the seats in the lowest possible position with sliders in order to allow a wider range of seats to fit in the C7's. This mount will still not allow for taller seats (example, Recaro SPGxl) to be used since the cockpit of C7's is not large enough. The incline in the Adapter allows for the seat to be positioned in the lowest spot possible when the seat is in its most rearward position. As the seat slides forward the height of the seat will increase. In order to place the seat in the lowest position on the sliders a cut in the carpet must be made.

Our Side Mount are not limited to these seats, call for more measurements.

-Compatible side mounts when using Recaro sliders

For Sparco Seats to Recaro Sliders:

(These parts are made for but not limited to the below mentioned seats.)

R-9060 - Sparco Evo, Momo Super Cup

R-9061 - Sparco Evo 2, Evo 2+, Corsa, OMP HTE-XL

For Recaro Seats to Recaro Sliders:

(These parts are made for but not limited to the below mentioned seats.)

R-9062 - Recaro Pole Position

R-9066 - Recaro SPG XL

R-9067 - Recaro SPA, SPG, Pro Racer HANS

For Cobra Seats to Recaro Sliders:

(These parts are made for but not limited to the below mentioned seats.)

R-9065 - Nogaro

-Compatible side mounts when mounting direct to R-9154

Side Mount Brackets for Sparco Seats

(These parts are made for but not limited to the below mentioned seats.)

R-9071 - Sparco Evo, Pro 2000

R-9072 - Sparco Evo, Pro 2000

R-9073 - Sparco Evo 2

R-9074 - Sparco Evo 2

R-9761 - Sparco Evo 2 Plus

R-9762 - Sparco Evo 2 Plus

R-9075 - Sparco Evo 2 US

R-9076 - Sparco Evo 2 US

Side Mount Bracket for Recaro Seats

(These parts are made for but not limited to the below mentioned seats.)

R-9075 - Recaro Pole Position, SPG XL

R-9076 - Recaro Pole Position, SPG XL

R-9755 - Recaro SPA, SPG, Pro HANS

R-9756 - Recaro SPA, SPG, Pro HANS

Side Mounts for OMP Seats

(These parts are made for but not limited to the below mentioned seats.)

R-9751 - OMP HTE

R-9752 - OMP HTE

Side Mounts for Cobra Seats:

(These parts are made for but not limited to the below mentioned seats.)

R-9775 - Nogaro
