Racetech RT4200HR Fiberglass Racing Seat

Description

Racetech RT4200HR Racing Seat – FIA Approved Fiberglass Head Restraint Racing Seat

The Racetech RT4200HR Racing Seat is an FIA 8855-1999 approved fiberglass composite racing seat designed for club and national-level circuit racing, rally, and competition motorsports. Building on Racetech's proven RT4100 shell geometry, the RT4200HR features increased rib support and enhanced head-restraint foaming for a more secure fit and improved driver containment. The integrated head restraint provides a 12.2-inch internal width, compared with 12.6 inches on the RT4100HR, creating a closer-fitting head-restraint area while maintaining proper FHR/HANS compatibility. The lightweight fiberglass shell also incorporates pronounced thigh support, parallel sides, large harness guides, and compatibility with up to a 6-point racing harness.

Designed for secure driver positioning and race car cockpit integration, the Racetech RT4200HR motorsport seat features Racetech's back-mounting system, flush mounting bosses, and a molded base cushion. The seat is finished with a gloss black gel-coated fiberglass composite shell and black fire-retardant nylon upholstery with breathable Spacer mesh. Available in Standard, Tall, and Wide & Tall configurations, the RT4200HR combines enhanced rib and torso support, a narrower padded head-restraint area, lightweight fiberglass construction, and FIA-approved racing performance for drivers seeking greater containment than the RT4100HR.

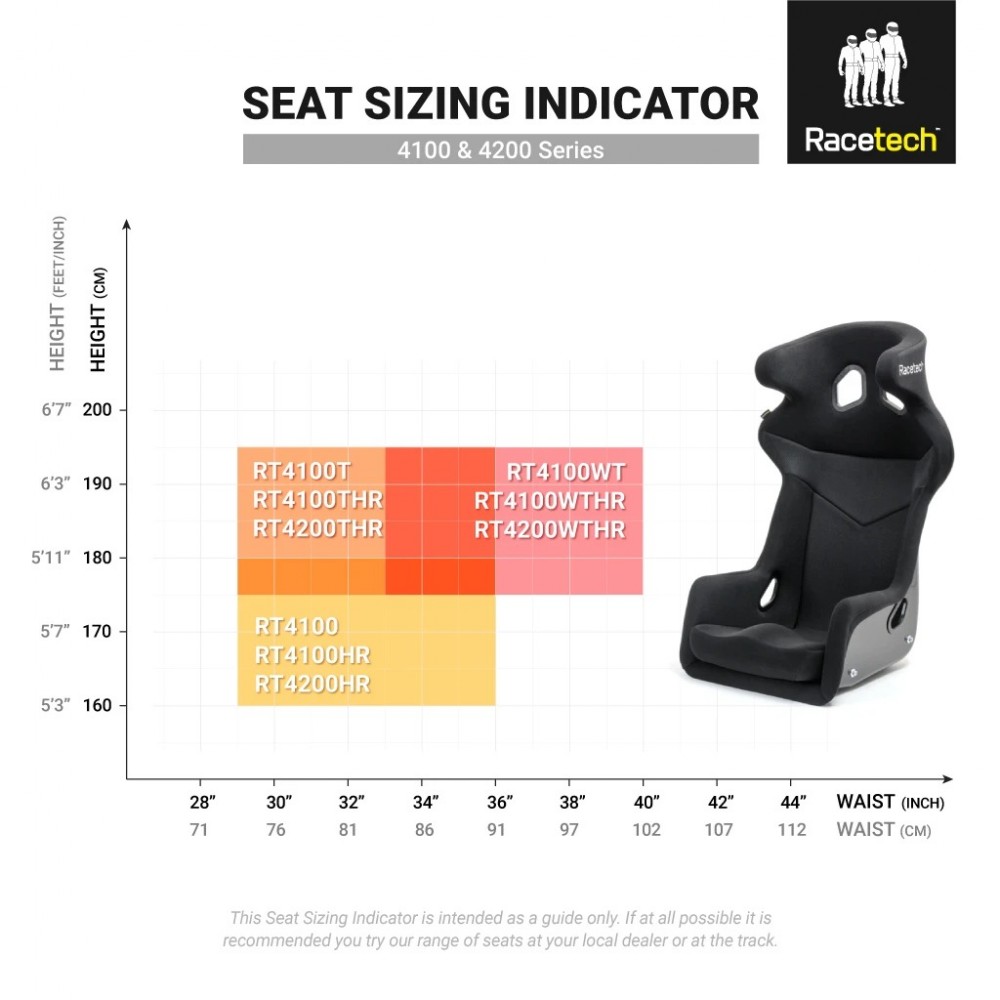

Choosing the Correct RT4200HR Size:

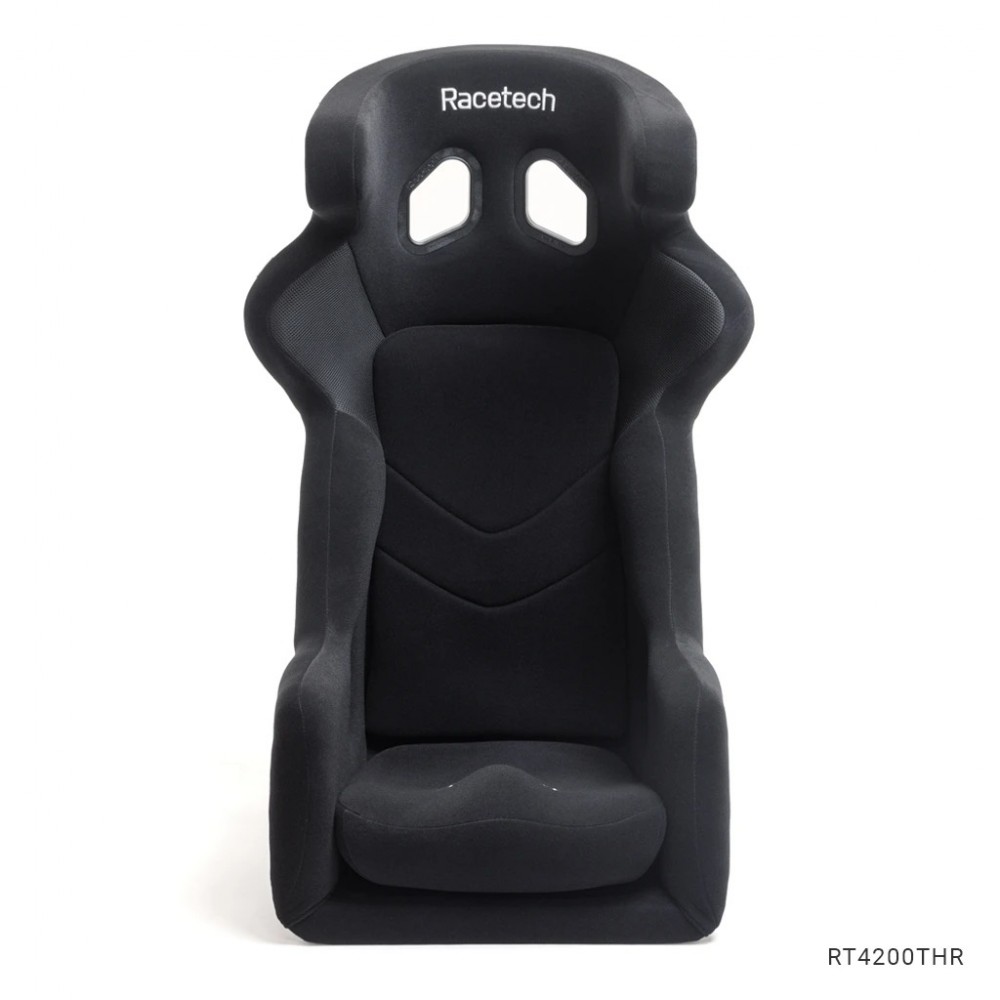

The Racetech RT4200HR Racing Seat is available in three sizes to accommodate different driver builds and race car cockpit configurations: Standard (RT4200HR), Tall (RT4200THR), and Wide & Tall (RT4200WTHR). All three feature a fiberglass composite shell, FIA 8855-1999 approval, integrated head restraints, HANS/FHR compatibility, large harness guides, and compatibility with up to a 6-point racing harness. The RT4200HR Standard has a 15.0-inch internal hip width, 34.3-inch maximum height, and 26.4-inch maximum length. The RT4200THR Tall retains the 15.0-inch hip width while increasing height to 36.6 inches and maximum length to 27.2 inches. The RT4200WTHR Wide & Tall combines the taller dimensions with an increased 16.5-inch internal hip width, providing additional width and height for larger drivers.

Key Features:

• FIA 8855-1999 approved fiberglass composite racing seat
• Integrated head restraints with enhanced head-restraint foaming
• Increased rib and torso support for a more secure driver fit
• FHR / HANS compatible
• Compatible with up to a 6-point racing harness with large harness guides
• Pronounced thigh support, parallel sides and molded base cushion
• Back-mount compatible for additional seat support and chassis integration
• Available in Standard, Tall, and Wide & Tall sizes

Measurements are in inches and weight is pounds; Images may differ from the actual product; embroidery on the product received may differ to that shown. Contact us if you have any questions.
