Item # AIM-MXG1.3

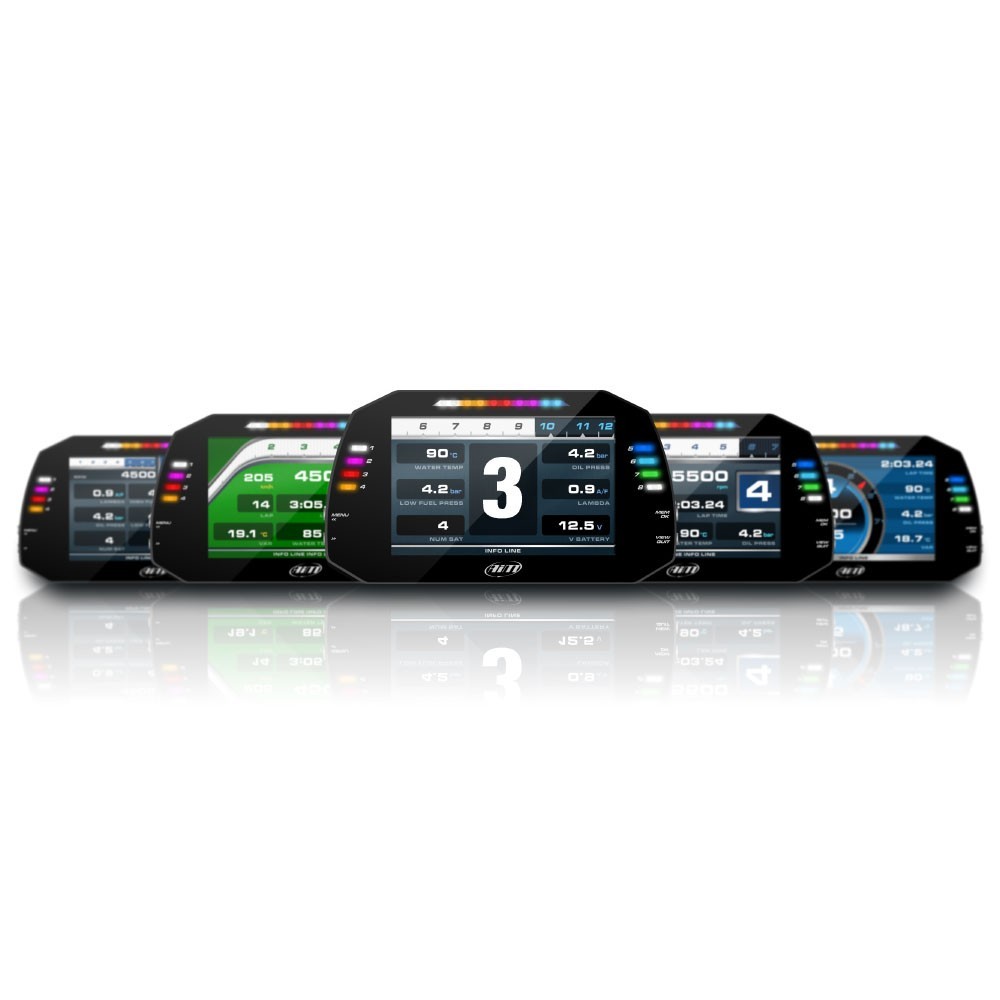

  • Advanced MXG 1.3 dashlogger with high contrast TFT display, customizable pages, and integrated shift light for race car data acquisition.
  • Expandable system featuring GPS09, CAN bus, analog/digital inputs, and compatibility with SmartyCam HD for comprehensive telemetry analysis.
  • Reliable data monitoring and control with configurable alarms, digital outputs, camera inputs, and telemetry tools for optimal vehicle performance.
$3,249.00
Last items in stock

Description

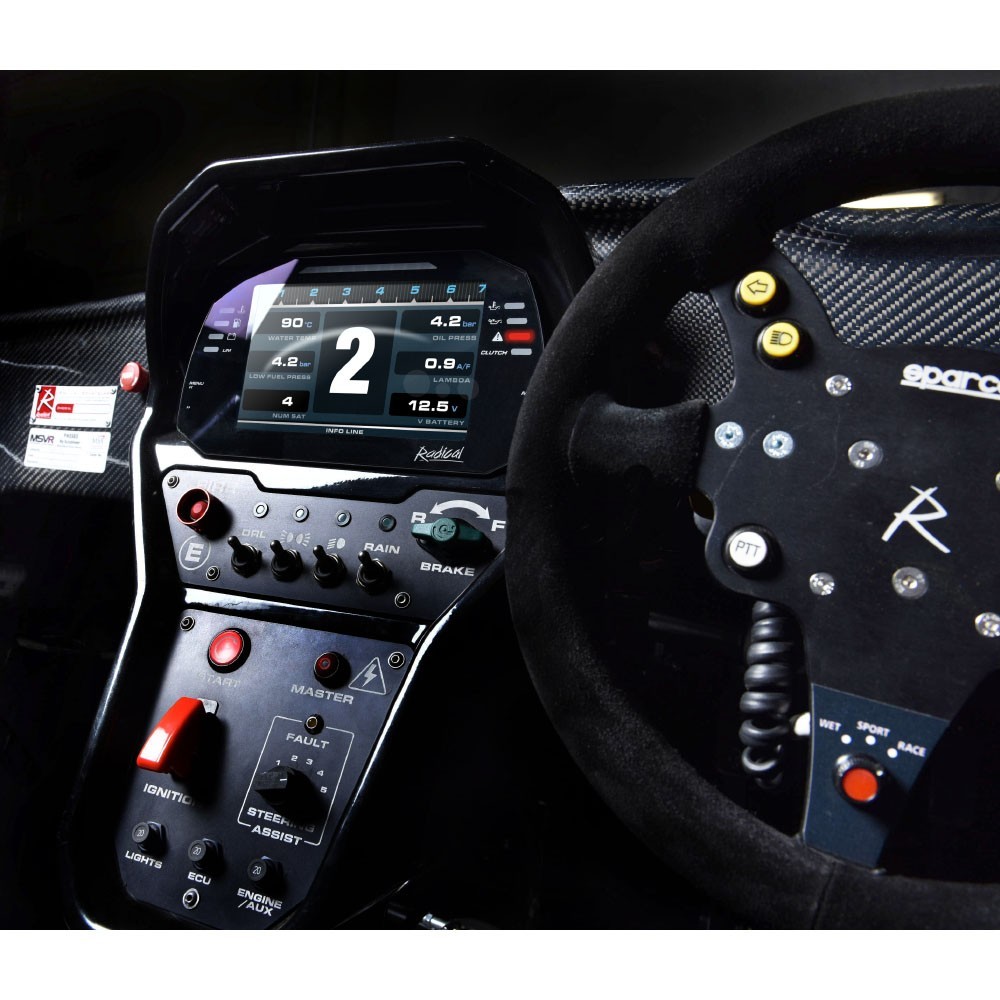

The MXG 1.3, the evolution of MXG, is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS09 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7" display makes it perfect for wide cockpits installation.

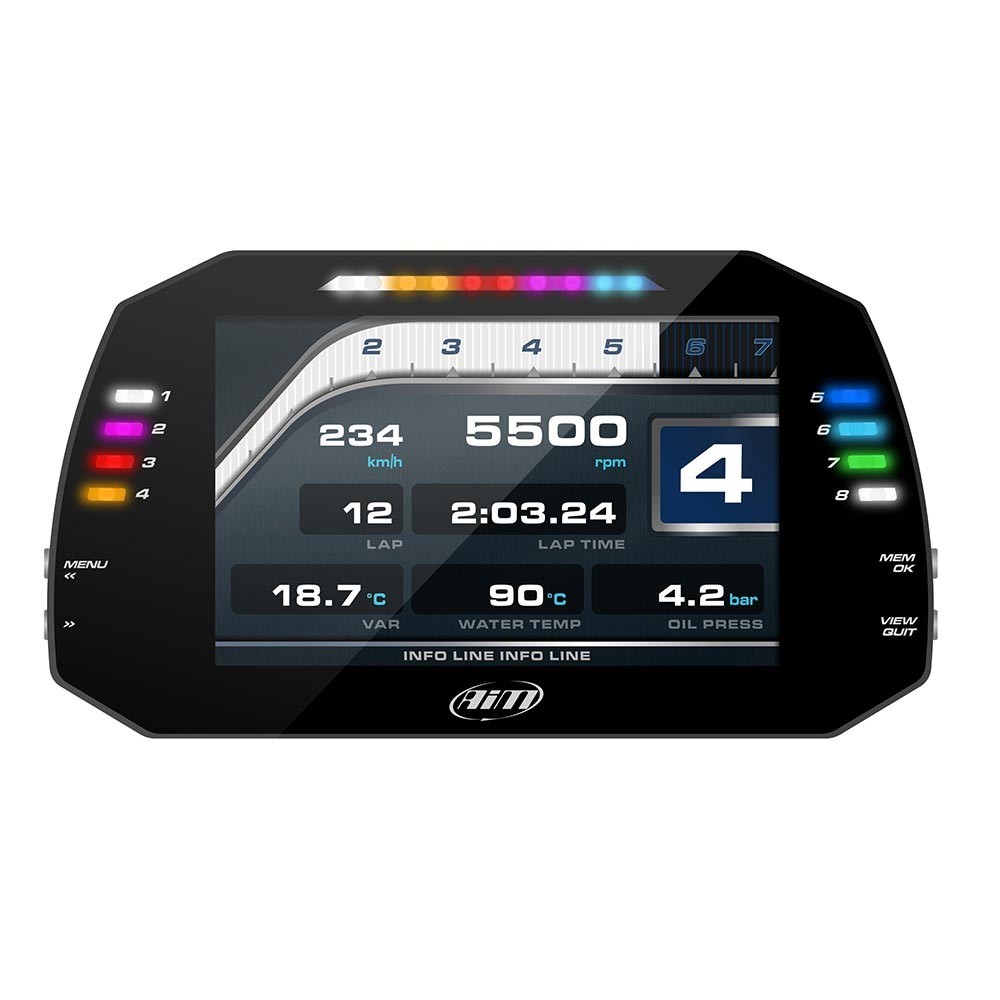

Freely Configurable Pages -
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.

High Contrast TFT Display -

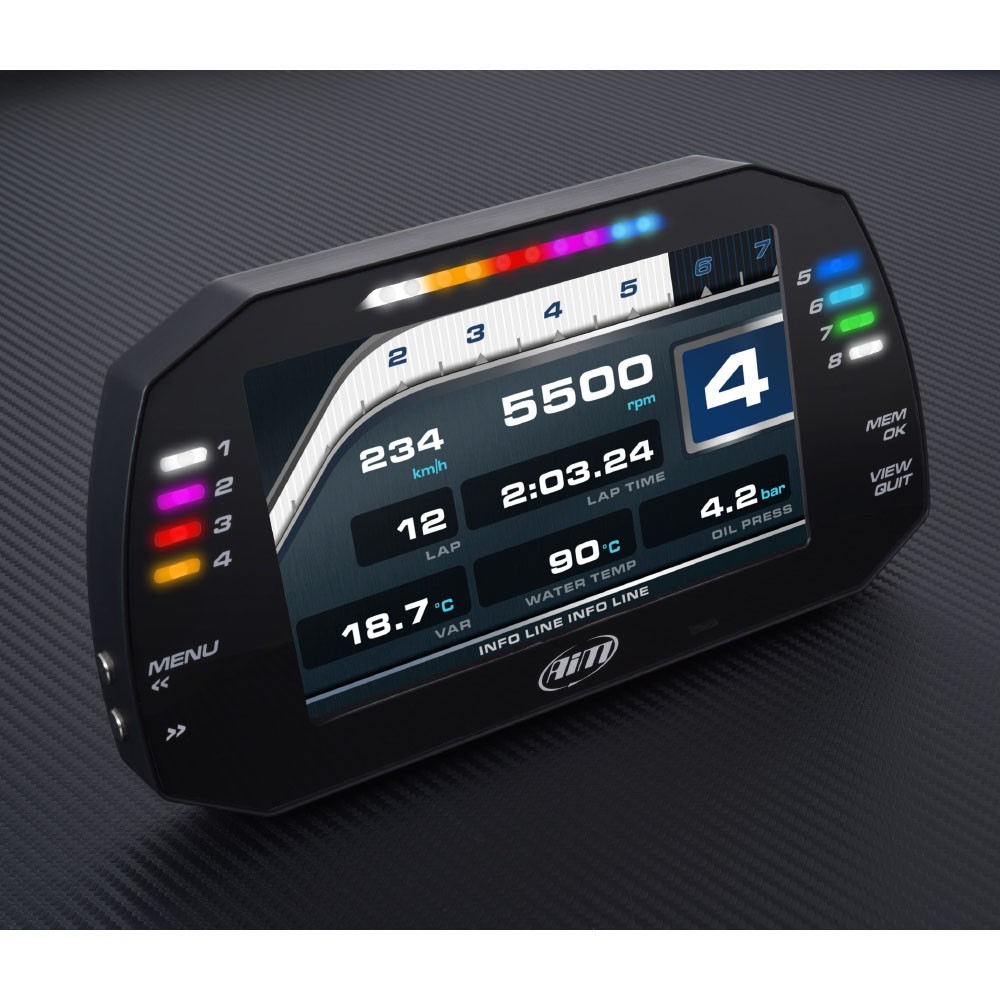

A high contrast TFT display identifies MXG 1.3 at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.

Flexible Alarms -
MXG 1.3 features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

Two Digital Outputs -
The MXG 1.3 features two digital outputs.
The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Camera Inputs, also for mirror camera -
Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.

Integrated Shift Light Array -
Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.

MX Series kit includes -
MX Series logger

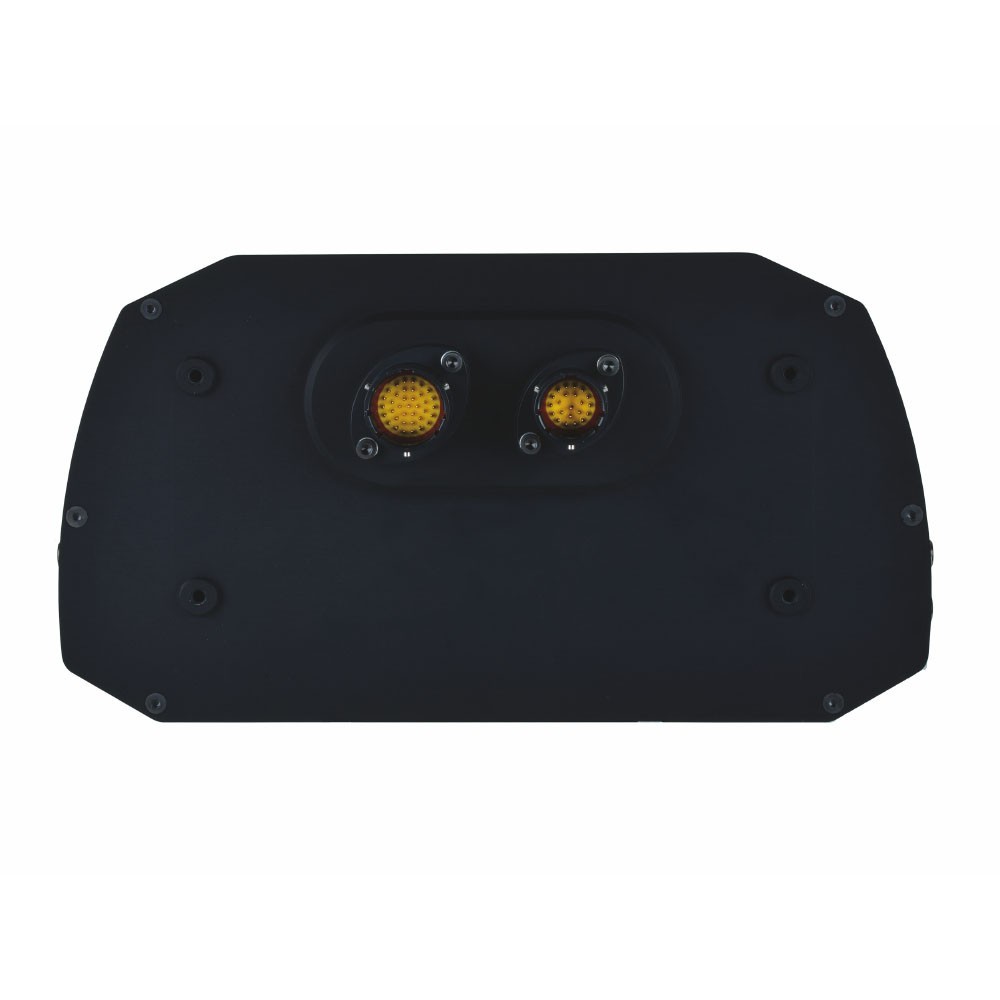

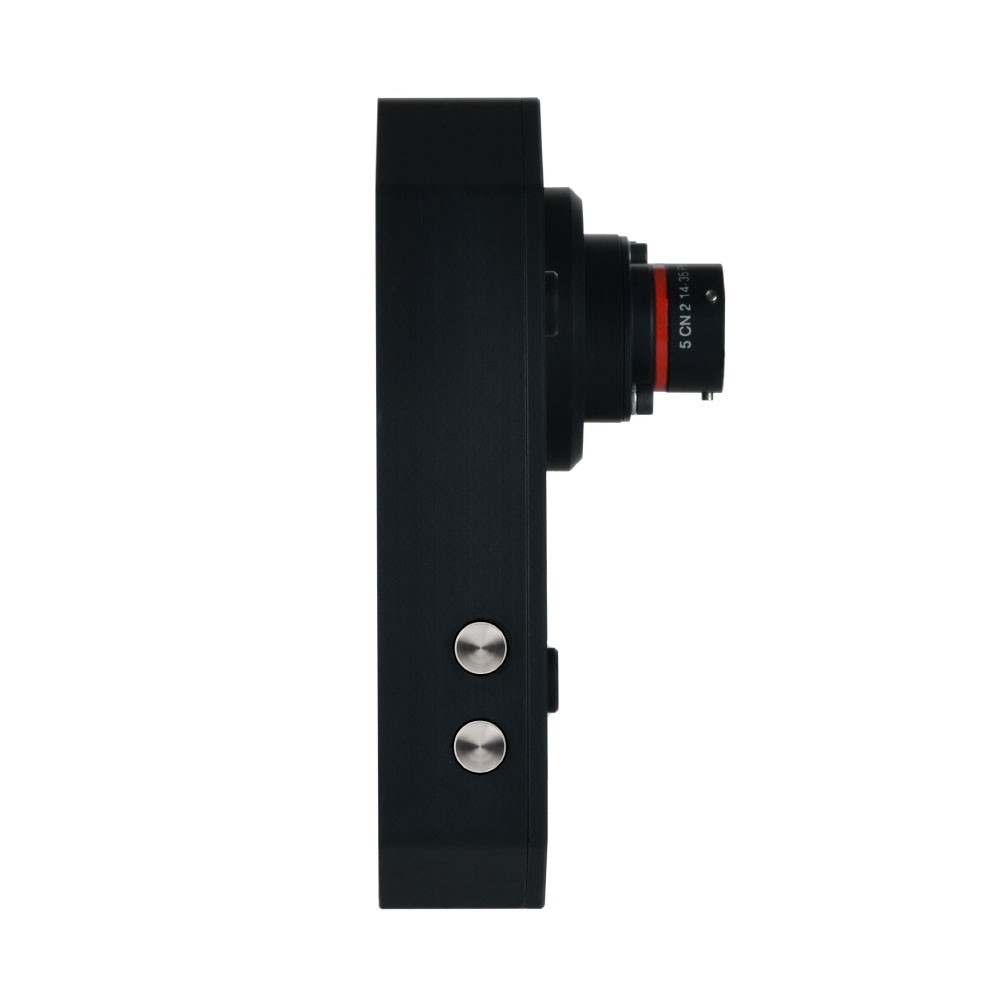

37 pin Deutsch Connector harness with mini USB
USB Adapter Cable
GPS09 Module

Expand the System, according to your needs -
Using the built-in CAN bus, you can add expansion modules to the MXG 1.2 to increment the performance and the data acquired:

GPS09 Module
Thanks to GPS09 Module (4m cable length included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.

Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

TC Hub
It adds 4 K thermocouples.

LCU-One CAN
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

Memory Module
The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

AIM-MXG1.3

Data sheet

Product Type
Dashes and Loggers
Equipment Type
Devices
Vehicle
Car

Specific References

seid
0205080000000
mpn
XA4MXG13A4000
