Description

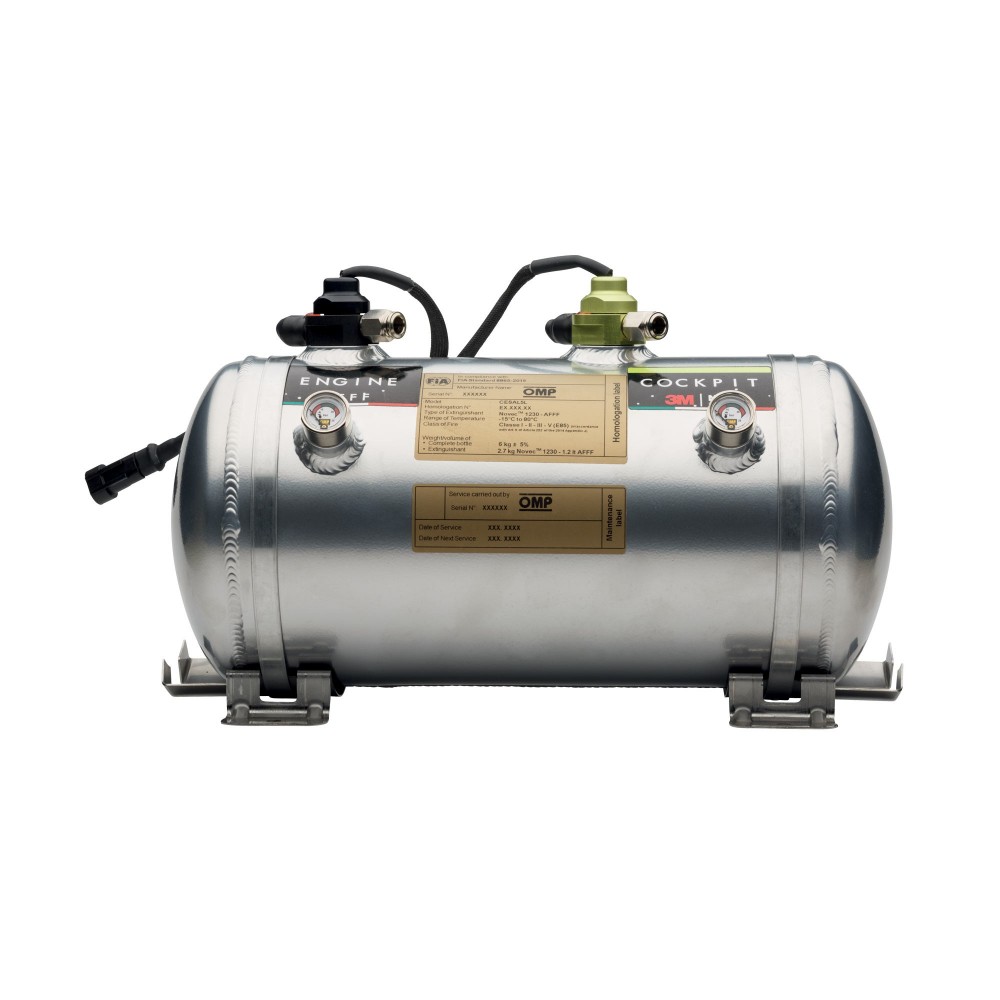

It’s a fire extinguisher system, electrically activated, suitable for saloon cars. The system it’s homologated FIA 8865-2015. One single bottle made in aluminum. The extinguisher can turn off the fire in few seconds injecting 2 different fire-extinguishing medium. AFFF (Black side) to protect the engine bay and the clean agent NOVEC1230 (Green side) to protect the cockpit. The system it’s pressurized. 3 black nozzles are for the engine bay in order to protect the most critical and dangerous parts depending on the type of vehicle, 2 green nozzles are for the cockpit to ensure the driver protection. Fixing brackets, clamps, tubing and connections are included. We are the exclusive authorized service center for OMP Racing fire systems in the United States. Contact us for more information!
Diameter 160mm. Weight: 6 kg. Length: 350 mm.
2.7 KG NOVEC + 1.2 L AFFF
“L” version suitable for medium-large sized cockpit.
“S” version suitable for small sized cockpit.
CESAL5S & CESAL5L spare parts and components
Tubing: CD/415 (90° end connection), CD/412 (3-way connection), CD/416 (straight connection), CD/414 (Y shaped connection), CD/323/A (aluminum tubing), CD/324/10/N (fire resistant sheath)
Nozzles: CD/411 (cockpit nozzle), CD/393/N (engine bay atomizer nozzle)
Electric parts: CD/360 (control box), X/CAB/360 e X/CAB/SSM, EA/467 (push button), X/181493 (protection for push button)
Other parts: CD/417 (fixing bracket and clamps), X/855 (Sticker)
