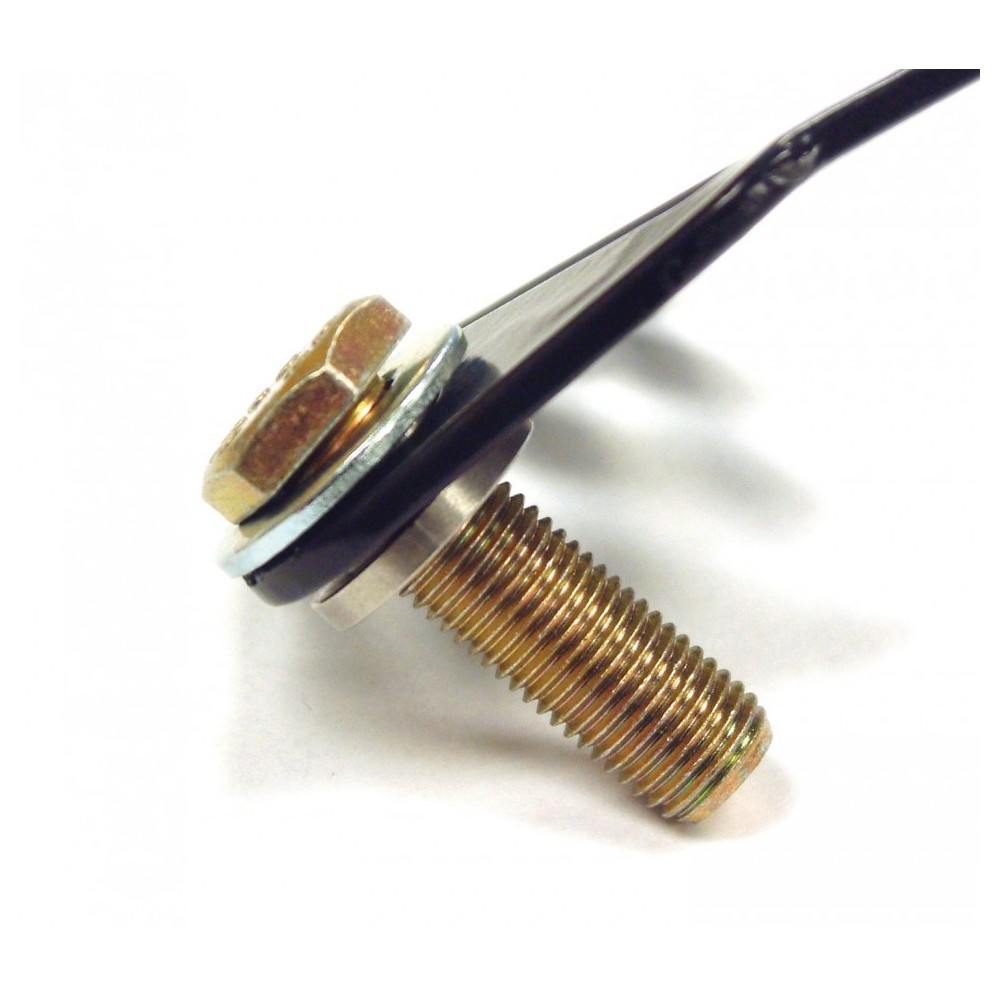

Schroth Pivot Sleeve for 7/16 Bolt

Schroth Pivot Sleeve for 7/16 Bolt

Item # SC-S65

  • High-performance Schroth Pivot Sleeve for 7/16" automotive harness bolts enhances harness geometry and driver safety in motorsports.
  • Allows precise harness webbing tension adjustment with pivoting action, ideal for racing, rally, and track vehicles.
  • Compatible with Schroth B24 brackets and other harness systems, ensuring secure fitment and optimal load distribution in high-stress environments.
$3.85
Available for Backorder (contact us for delivery times)

Description

Schroth Pivot Sleeve for 7/16 Bolt

The Schroth Pivot Sleeve for 7/16" bolts is an essential component designed for high-performance automotive harness systems, particularly in motorsports applications where precise harness geometry and safety are critical. This durable sleeve allows the bracket to pivot on the bolt, enabling optimal angle and tension adjustment of harness webbing, thereby maintaining proper load distribution and improving driver safety.

In bolt-in harness setups, achieving correct harness orientation is vital for effective restraint during high-speed maneuvers and impacts. The pivot action facilitated by this sleeve ensures that force applied on the webbing directly influences the bracket’s position, helping to maintain ideal geometry throughout dynamic conditions.

Key Features:

  • Specifically designed for 7/16" (0.4375 inch) bolts used in motorsport harness installations
  • Allows for pivoting of harness brackets, optimizing harness angle and tension for improved safety and performance
  • Must be used with a washer on one side to ensure proper fit and function
  • Available in multiple sizes to accommodate different bolt specifications and bracket configurations
  • Compatible with Schroth’s B24 bracket and other harness mounting systems in racing vehicles

Usage Instructions:

For proper installation, ensure the pivot sleeve is used in conjunction with an appropriate washer, as shown in their product diagrams. When installing with a B24 bracket, a specific sleeve designed for that application should be selected unless using the SG11 bolt, which features a shoulder compatible with the B24 bracket. Selecting the correct sleeve size ensures secure fitment and reliable pivot function in high-stress racing environments.

Application in Motorsports:

This component is ideal for racers and automotive professionals who require precise harness adjustment and maximum safety in competitive and high-performance racing scenarios. It is suited for use in rally cars, track cars, and other motorsports vehicles where harness geometry directly impacts driver safety and vehicle control.

Choose the Schroth Pivot Sleeve for 7/16" bolts to ensure your harness system functions flawlessly with reliable pivot action, contributing to safer, more controlled racing experiences.

SC-S65

Data sheet

Product Type
Accessories

Specific References

seid
0161400000000
mpn
SR S65
