Bell 287 SRV Helmet Shields fits K1 Sport/K1 Pro/GP2 Youth

Description

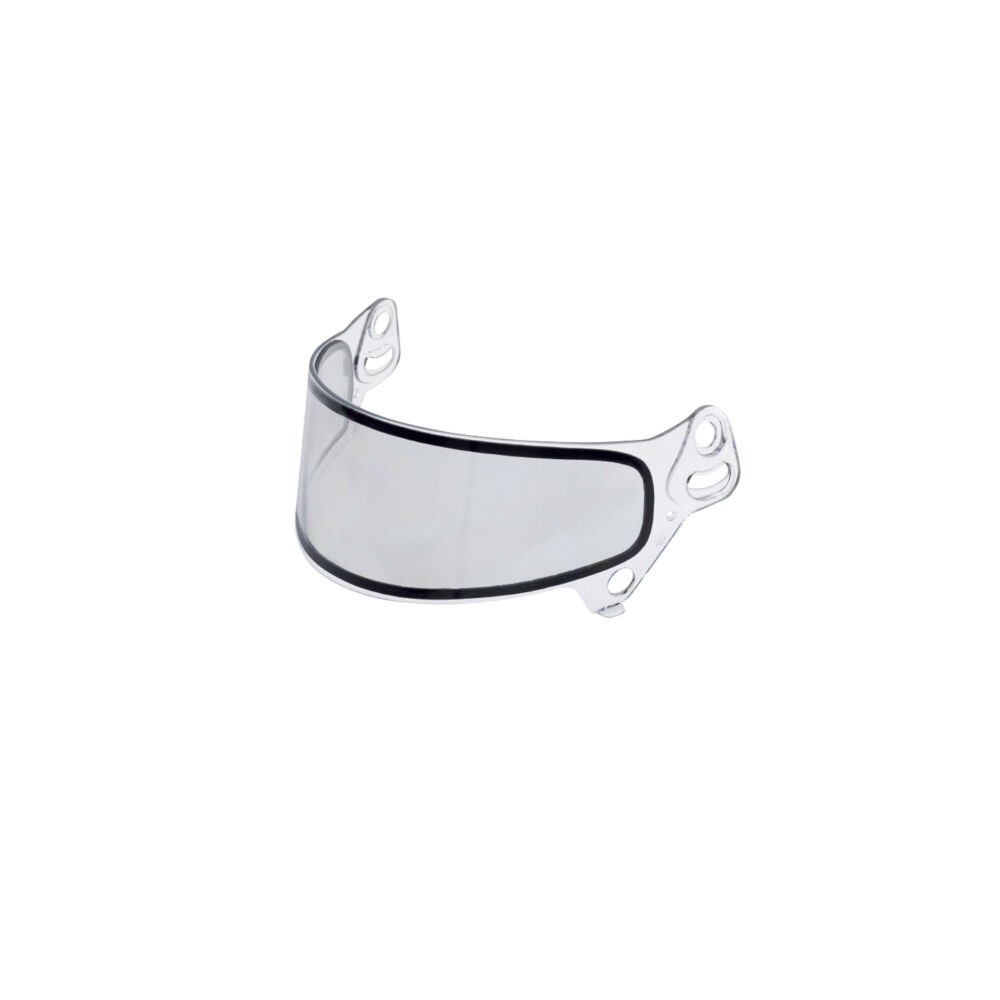

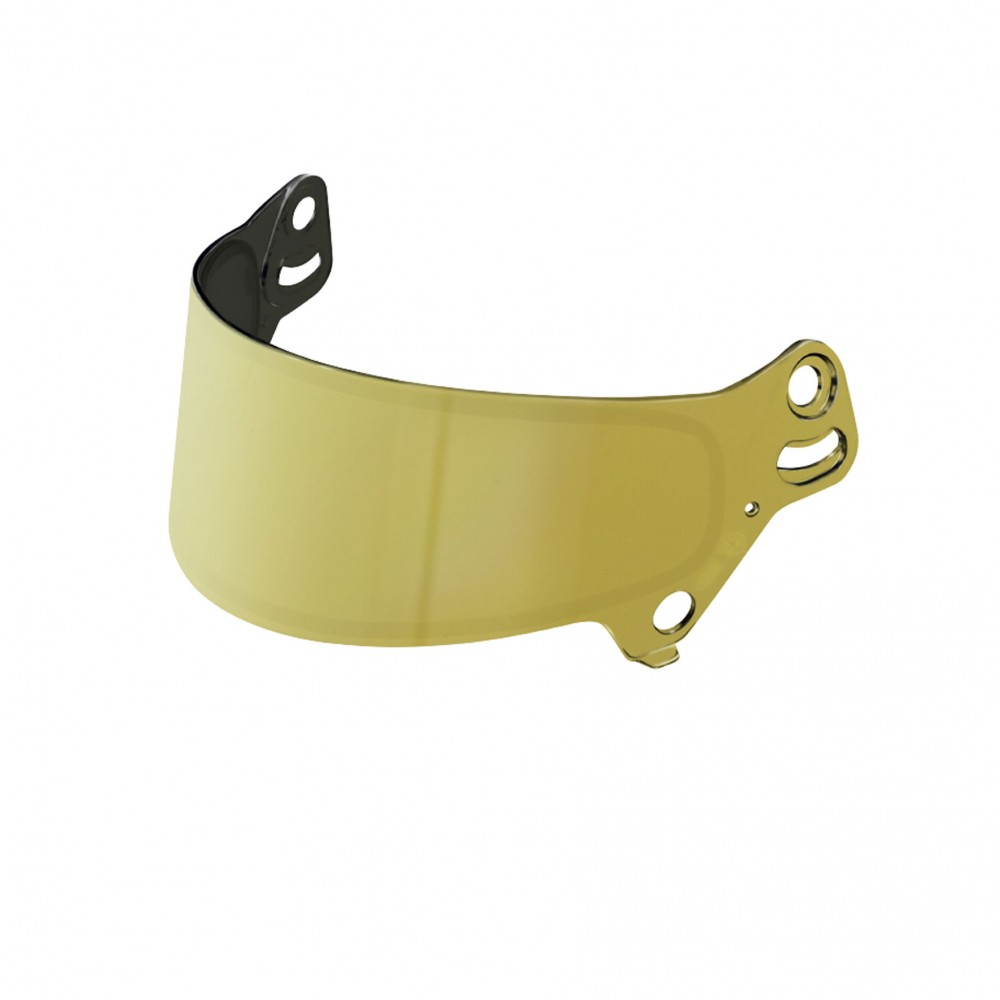

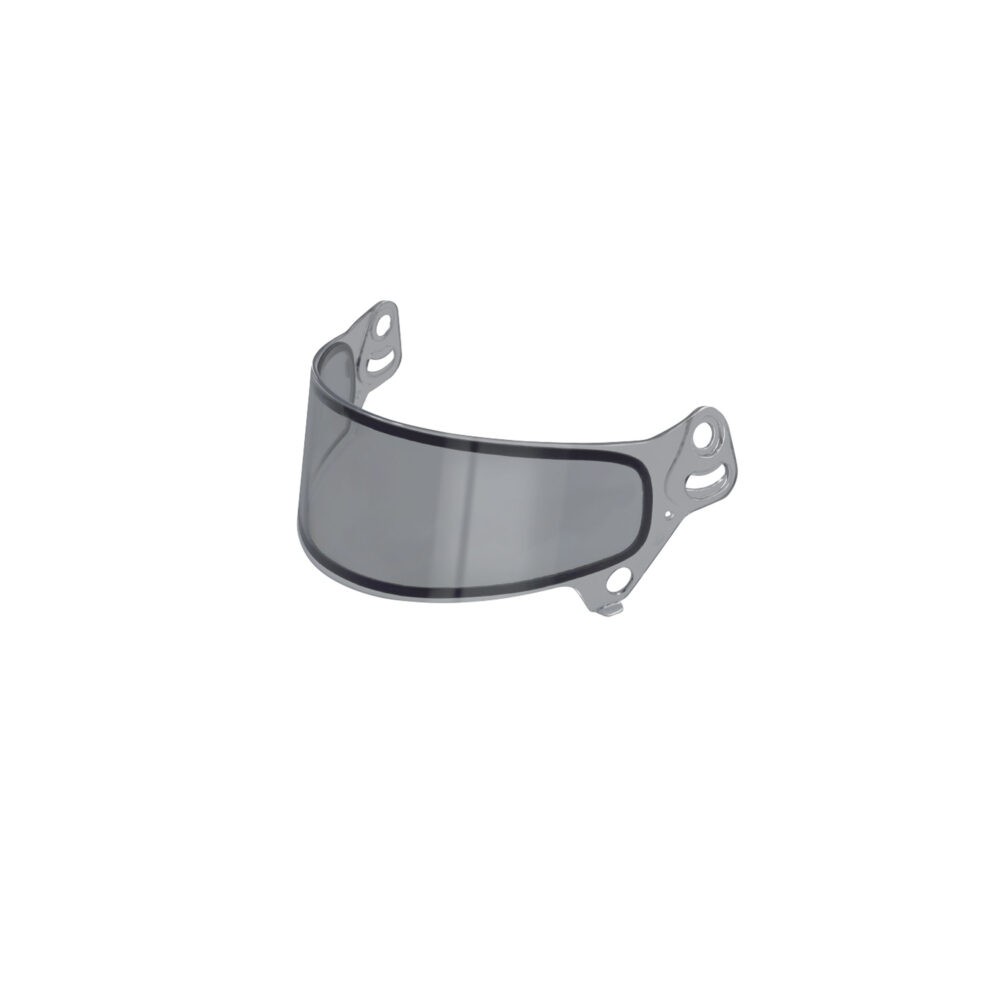

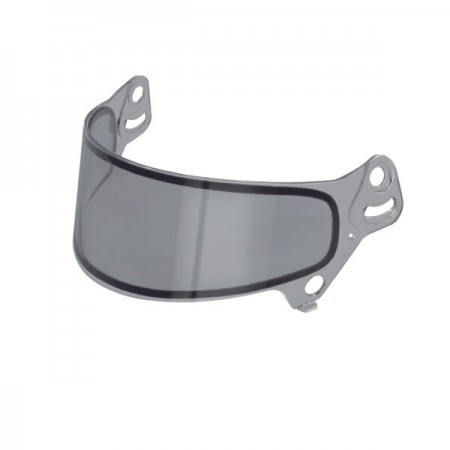

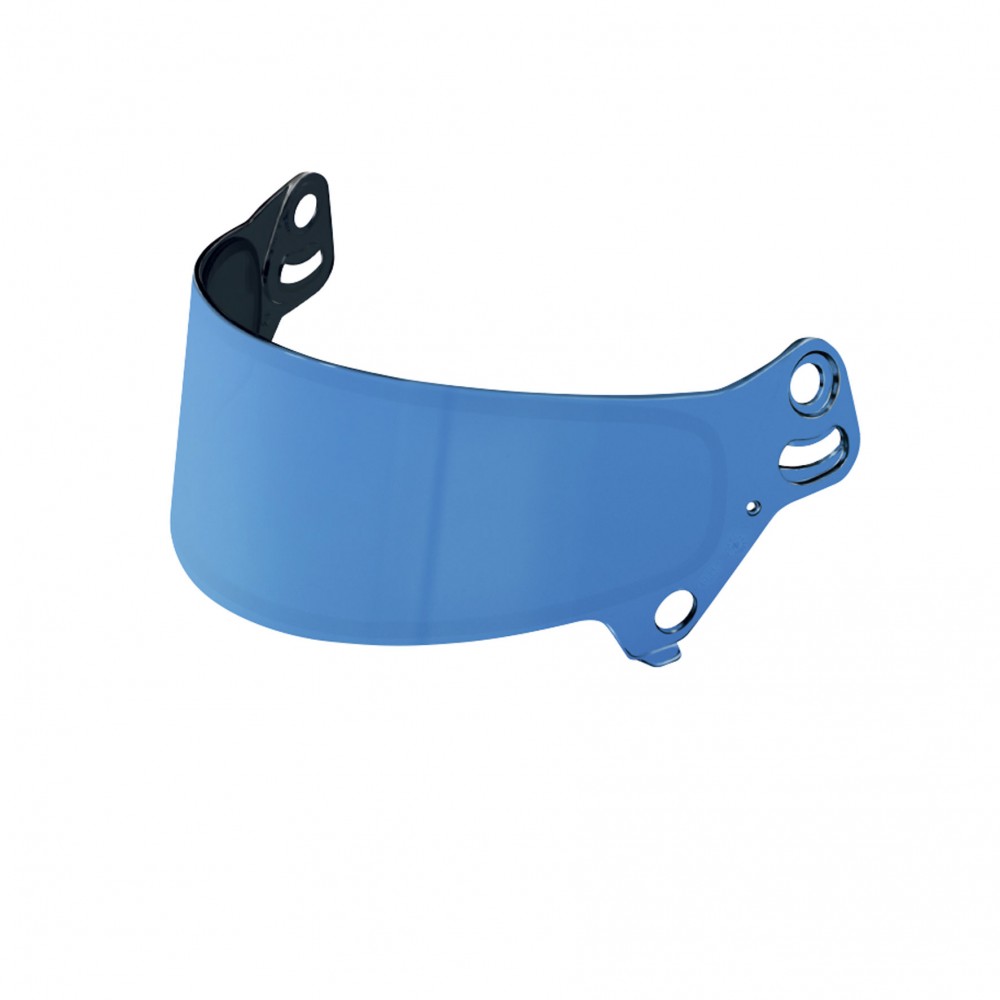

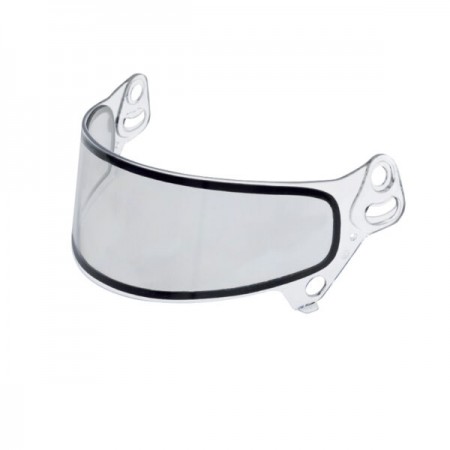

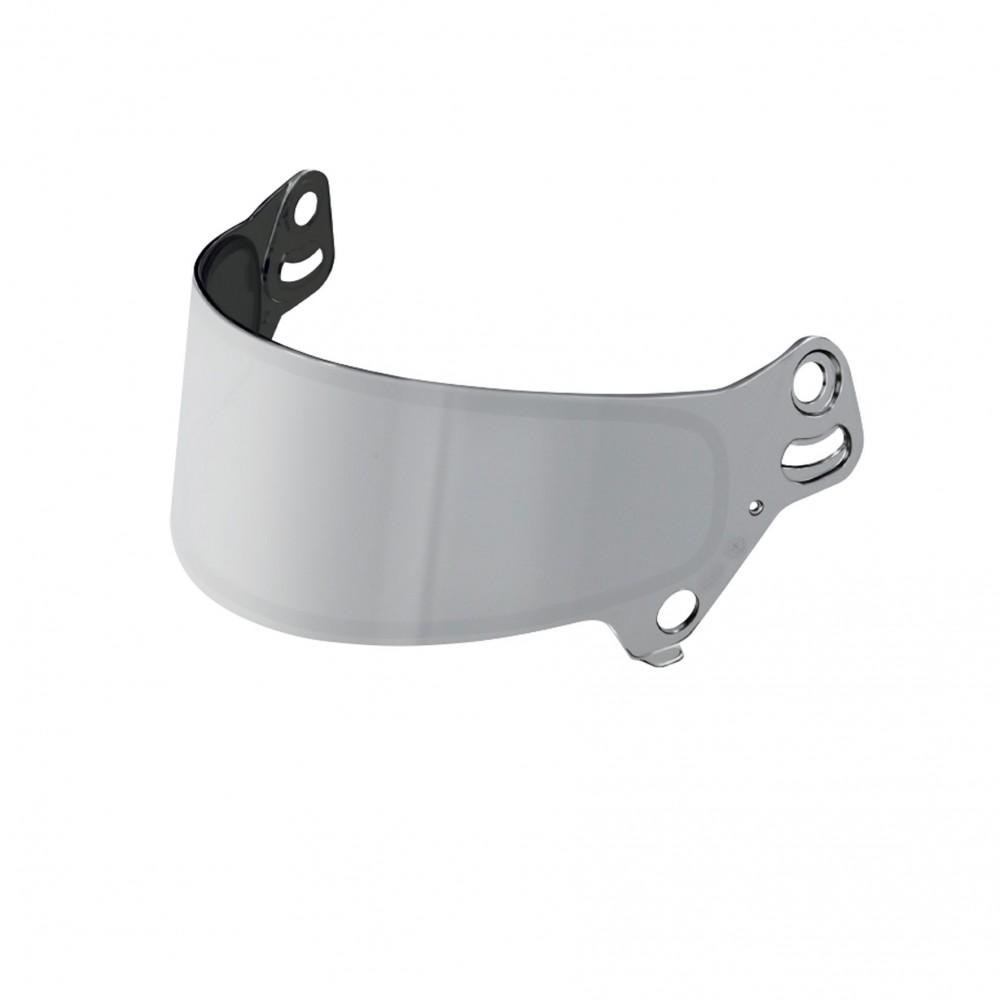

The 287 SRV shield is an injection-molded optically correct polycarbonate face shield. The 287 SRV shield uses the SRV-1 pivot kit, is compatible with tearoffs, and is available in a variety of colors. Double Screen Anti Fog (DSAF) inserts are available separately to improve fog control. Compatible with the K1 Pro, K1 Sport, and GP2 Youth

Shield Installation and Cleaning

It is important to properly remove and install shields onto your helmet to guarantee the highest level of vision clarity and overall protection. By following these simple steps, you will be able to assure your shield is in the best possible condition to succeed in any application.

1. Remove both the left and right-side shield pivot screws using the hex wrench provided with your helmet.


2. Remove the left and right-side friction sliders and screws using the hex wrench provided.


3. Remove the shield from the helmet and inspect for scratches or imperfections that may cause a decrease level of vision clarity.


4. Using only the highest quality of automotive, water-based glass cleaner, gently clean the visor using a microfiber cloth to assure a scratch-free cleaning.


5. To re-install the shield, place the shield back on the helmet and place the pivot screws back into the helmet. Be sure to not overtighten the screws, as this may damage the screw threads or pivot inserts.


6. Replace the friction sliders and screws and adjust to the desired level and close the shield. Adjustment of the eccentric button may be required.


7. Check the action and function of the newly replaced shield prior to use to assure the installation was correct.
