MyLaps X2 RaceLink Club V2

Description

Fair racing starts with clear flag signals

The new X2 RaceLink Club brings on-board flagging to your vehicle, delivering live personal and track flag signals directly from race control, helping you react faster and race smarter.

Accurate live tracking helps race control monitor every competitor consistently, thanks to a fast 10Hz GPS update rate. The result is fairer racing for everyone on track, no matter their position.

Built for endurance and ease of use, the X2 RaceLink Club features up to 24 hours of battery life, simple subscription setup via the Speedhive app, and a reliable design built to handle the demands of real racing, every time you hit the track.

Please note:  This is NOT a timing transponder. Check with your track if it supports the X2 RaceLink Club!

Features:

• On-board flag signals help ensure clear communication and fair racing
• Live GPS tracking enables accurate race control monitoring
• Up to 24 hours of battery life for full-day racing
• Fast 10Hz GPS update rate for precise positioning
• Easy setup and subscription management via the Speedhive app
• Multiple subscription options or a no-subscription Go version

What's in the box?

• X2 RaceLink Club

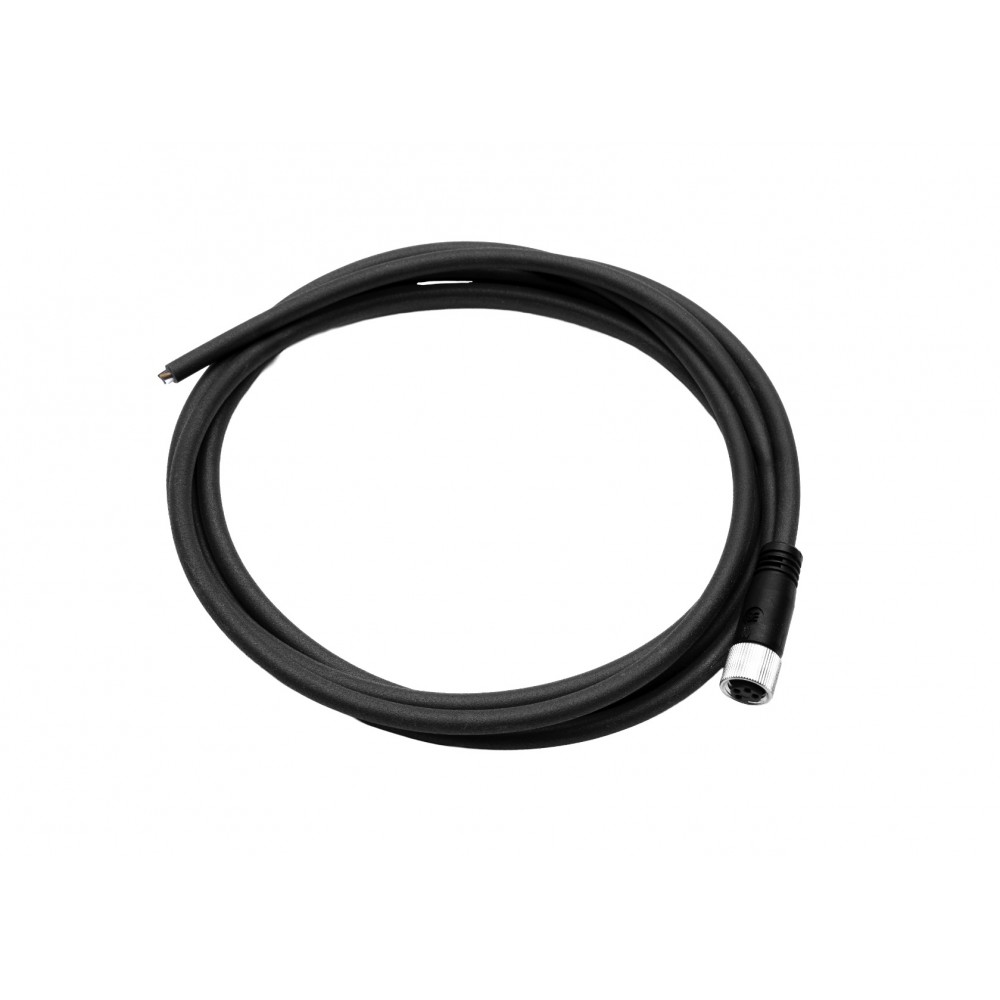

• M8 Power Cable

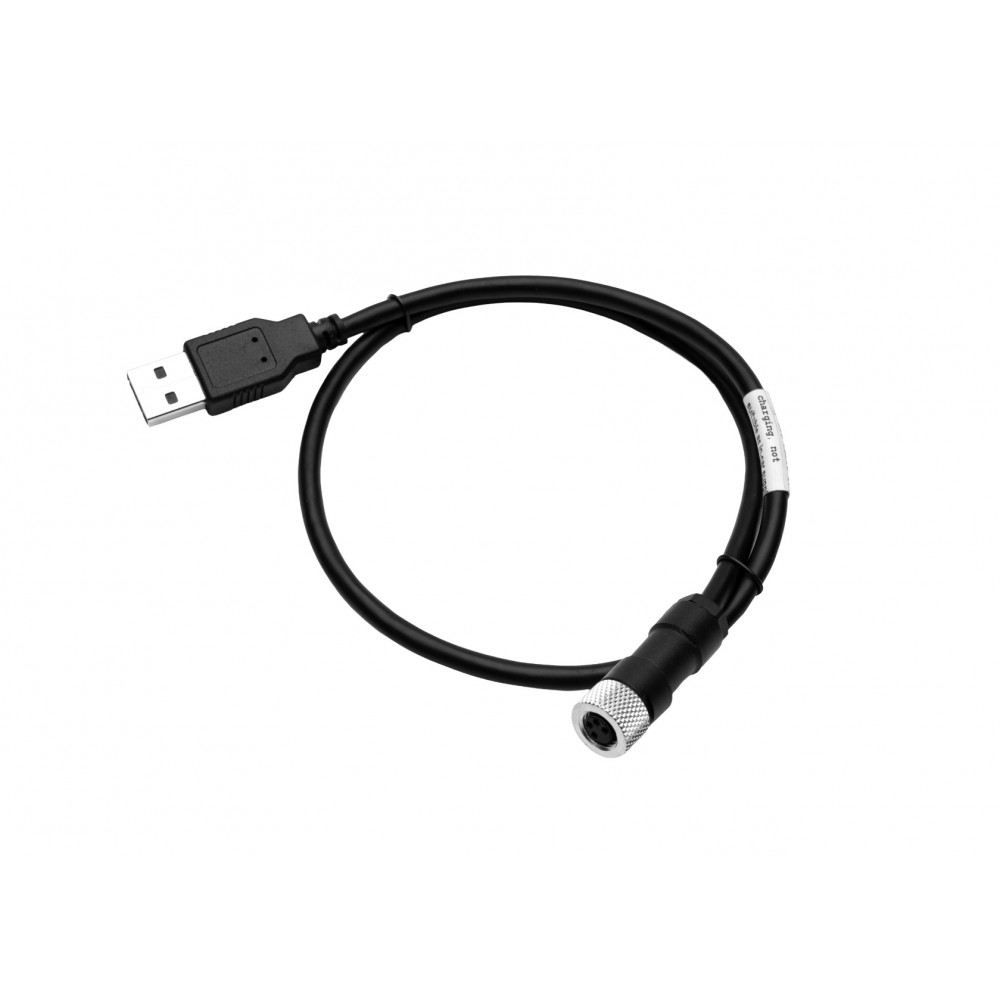

• M8 4pin to USB

Please note: RaceLink Club includes power cables only, MYL-40C469 includes all other necessary parts needed to complete the RaceLink installation.

Installation:

Get ready to race!

Make sure the top sticker of the X2 RaceLink Club has a clear view to the sky and around the vehicle.

• Install both the GPS and RF antenna as high as possible with a clear view to the sky when using the cable kit
• Do not place the X2 RaceLink Club next to other RF antennas. Keep at least 1m distance
• Find a place on your dashboard where you can clearly see the lights of the X2 RaceLink Club
• Keep out of direct sunlight as much as possible

For more information please visit help.mylaps.com

Specifications:

• Compatible with MYLAPS X2 Race Control system (check compatibility with your event organizer or track)
• Dimensions - 83 x 59.5 x 24 mm / 3.3 x 2.4 x 1 in
• Weight - 120 g / 0.26 lbs
• (Back up) Battery lifetime - Up to 24 hours
• Battery charging - 6 hours for full charge
• Operating voltage - 7-18 VDC typical 12V
• Power consumption - 1.3W, 110mA@12V
• Operating temperature - 0 to 50C / 31 to 122F
• Storage temperature - 0 to 30C / 31 to 86F
• Shelf life storage mode - 6 months (when fully charged)
• Shelf life non-storage mode - 1 month (when fully charged)
• Humidity range - 10% to 90% relative
• Positioning 3 concurrent GNSS reception
• Sensitivity -167dBm, 72 channels
• Update rate GPS 10Hz

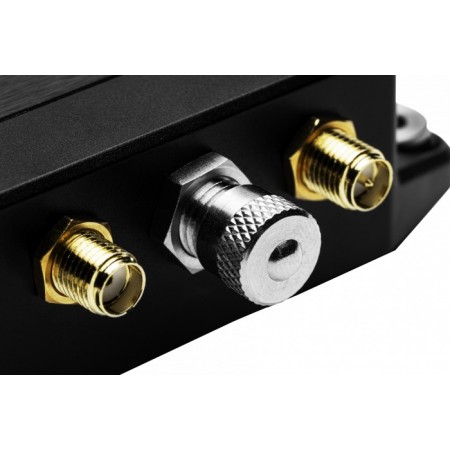

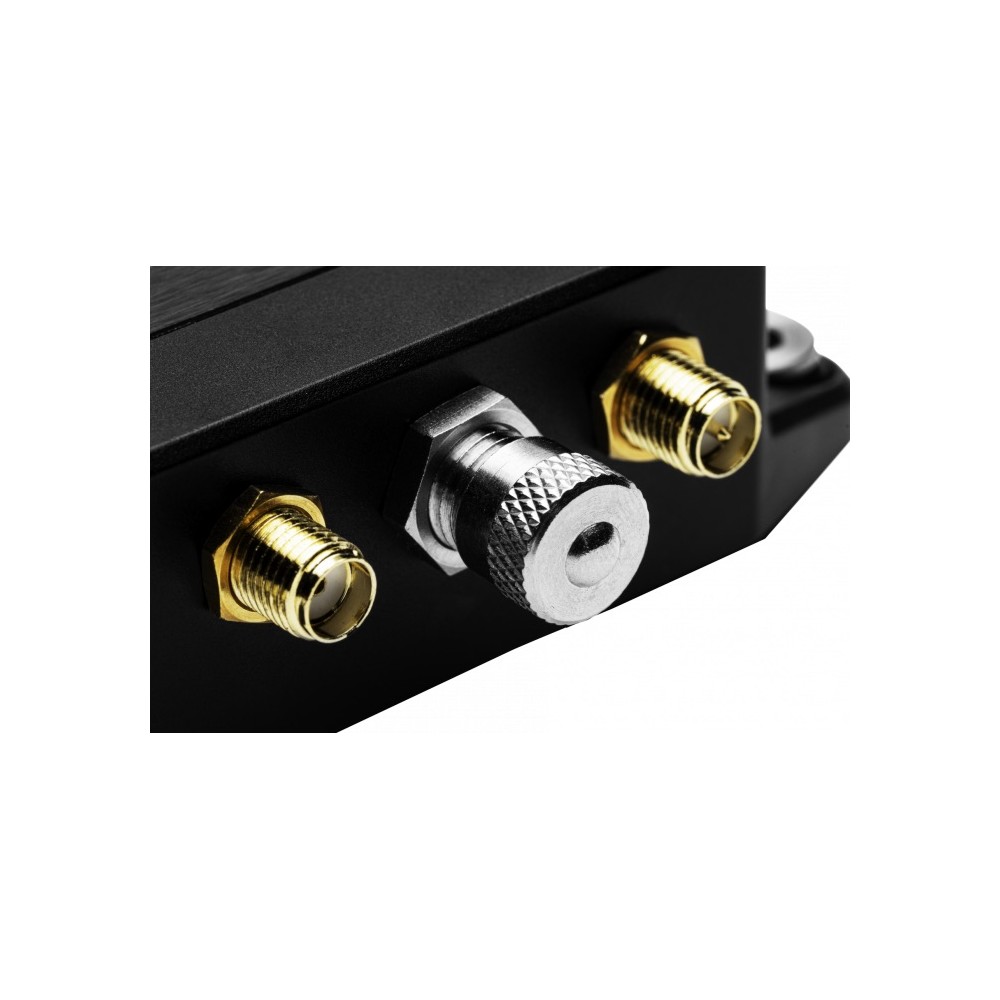

• GNSS Antenna Connection SMA(F), 3.0V active antenna
• RF Antenna Connection - RP-SMA(F)
• RF Output +20 dBm @ 2.4GHz ISM
• Charging- 300mA @ 5VDC / 150mA @ 12VDC
• Protection Class IP 62 without connectors connected / IP 64 with connectors connected
• Protocol - CAN 2.0
• Baudrate - 1Mbps (default), 500 or 250 Kbps
• Termination - 120 Ohm software selectable
