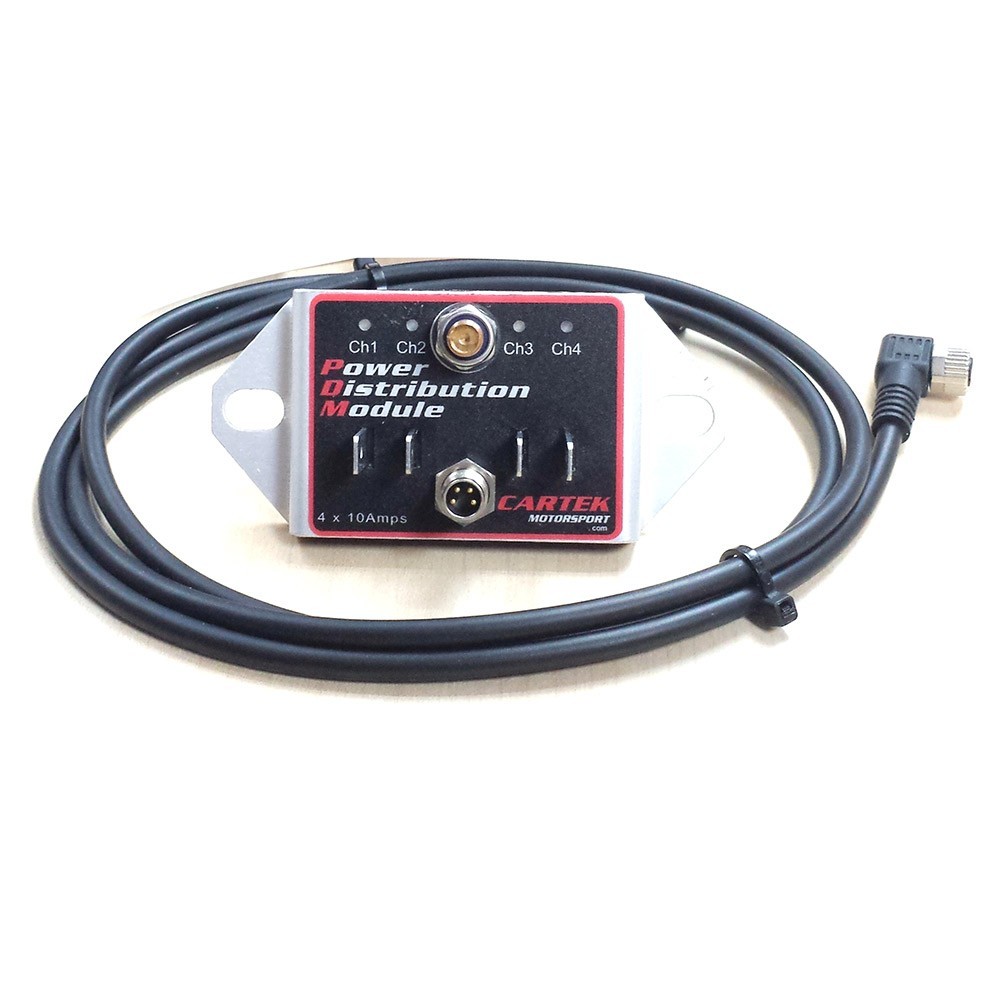

Cartek Module - Power Distribution Module (Unit Only with Connection Lead) CK-PM-04

Cartek Module - Power Distribution Module (Unit Only with Connection Lead) CK-PM-04

Item # CAR-CKPM04

High-quality 4-channel power distribution module designed for racecars and motorcycles with electronic over-current protection and rugged, sealed construction.
Fully electronic, shock, vibration, water, and dirt resistant, with easy plug-and-play connections for reliable vehicle electrical systems.
Compact lightweight design (80g), operating across 7V-18V, with dual-colored status LEDs and capacity to control multiple devices including ECUs, lighting, and fans.

$207.99

Quantity

In Stock

Description

** Power Distribution Module ONLY , Panels and switches sold separately from this model. Refer to Part # CAR-PK-08 For Full kit. **

The 4 channel Power Distribution Module from CARTEK has been designed to replace the functions of fuses,
circuit breakers and relays in one small, fully electronic unit.

This Power Distribution Module is ideal for race
cars and motorcycles which have minimal onboard
electrical circuits but still require rugged and
reliable protection and control.
Simple connections and no configuration procedures
makes this system very easy use and quick to install.
Outputs can be used to control power to various
devices such as ECUs, instrumentation, lighting,
starter solenoid, radiator fan, etc.
Visual over-current and short-circuit indication
makes fault finding simple.
Can be supplied on it’s own or as a kit with switch
panels.

FEATURES

Fully electronic with no moving parts.
Totally sealed against water and dirt.
Completely resistant to shock and vibration.
Each channel incorporates over-current protection.

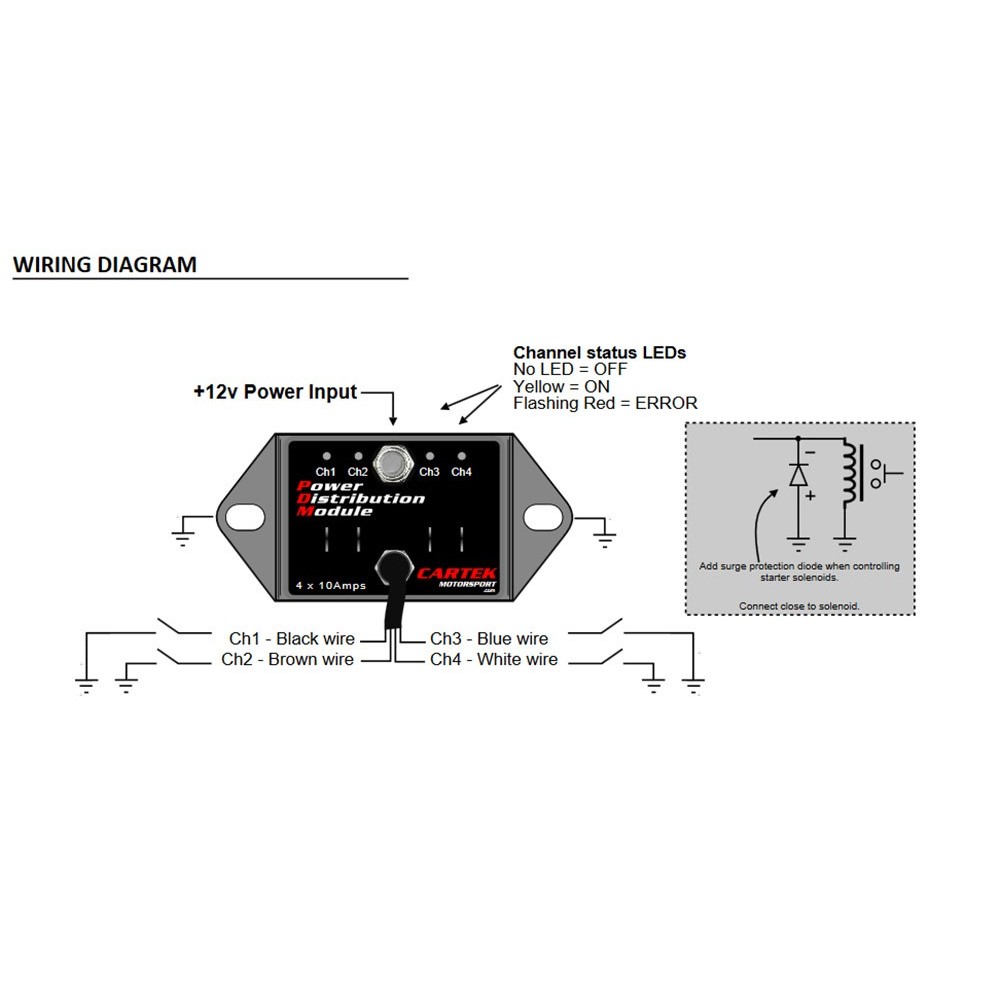

Channels can be controlled by switch or signal
inputs.
Dual-coloured status LED for each channel.
Very small and weighs just 80g.
Manufactured in UK using high quality components.

Specifications:

Size:

L = 90mm, W = 42mm.

Weight:80g.
Positive Power terminal:M6 stud.
Channel Output connections: 6.3mm Male Spade Terminals
Electrical Connector:Binder
Flying Lead:Binder 79 3384 42 04 (2 meter long)
Operational Voltage:7v - 18v
Outputs:10A - 12A (continuous), 18A (10 seconds)
each channel. Maximum total 50A.
Current consumption:0.02A (No Load)
Operating temperature:-10°C - +85°C.
Storage temperature:-40°C - +125°C
